SMA both-end plug Φ3.58 semi-flexible cable
Excellent shape memory properties, maintaining the set shape Easy handling with high flexibility Maintains stable high-frequency characteristics Achieves highly reliable connections using SMA connectors Wide-ranging support from evaluation and prototyping to mass production applications
Inquire About This Product
basic information

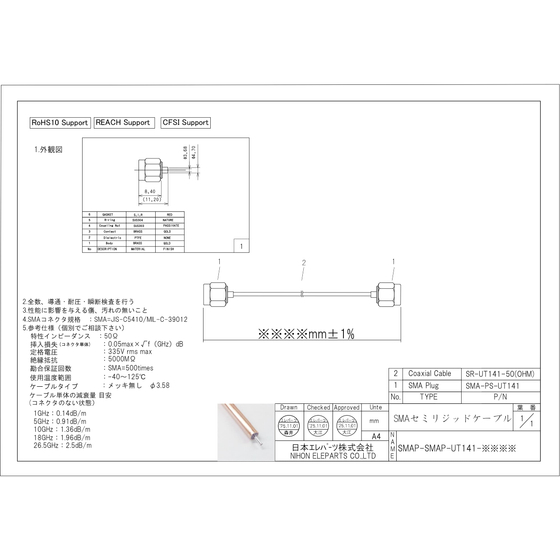

Specification SMAP (Nickel Plated) - SMAP (Nickel Plated) Shape Straight Cable SF-141 Outer Diameter Φ3.58 Compliant with RoHS Directive (10 substances) and Green Purchasing Law Connector Type SMA Plug/Plug Available lengths from 60mm to 1000mm *The stated length includes the total length with connectors. *Repeated bending and stretching is not recommended. *Please handle with care as it contains precision parts. *SMAP (Nickel Plated) - SMAP (Nickel Plated)
Price range
Delivery Time
Applications/Examples of results
Excellent shape memory properties, maintaining the set shape Easy handling with high flexibility Maintains stable high-frequency characteristics Achieves highly reliable connections using SMA connectors Wide-ranging support from evaluation and prototyping to mass production applications
Line up（1）
| Model number | overview |
|---|---|
| SMAP-SMAP-SF141-※※※※ | https://biz.mono.ipros.com/company/2071234/catalog/829587 |
catalog（1）
Download All Catalogs
Company information
Nihon Eleparts Co., Ltd. specializes in coaxial cable processing as its main business. All products are handmade and manufactured one by one in Ota Ward, Tokyo. To meet the diverse needs of our customers, such as high frequency, high speed, wide range, waterproofing, isostatic, leakage, miniaturization, high voltage, and phase adjustment, we specialize in handling coaxial cables and coaxial connectors. 【Products We Handle (Excerpt)】 ■ SMA Connectors ■ SSMA Connectors ■ N-Type Connectors ■ SMB Connectors ■ MMCX Connectors ■ M-Type Connectors ■ BNC Connectors ■ MCX Connectors ■ F-Type Connectors ■ TNC Connectors ■ MHF Connectors ■ U.FL Connectors ■ Mini Pin Connectors (TMP Connectors, SP Connectors) * We can also process and manufacture a variety of coaxial metal connectors beyond those listed above. Please feel free to contact us with any requests.
