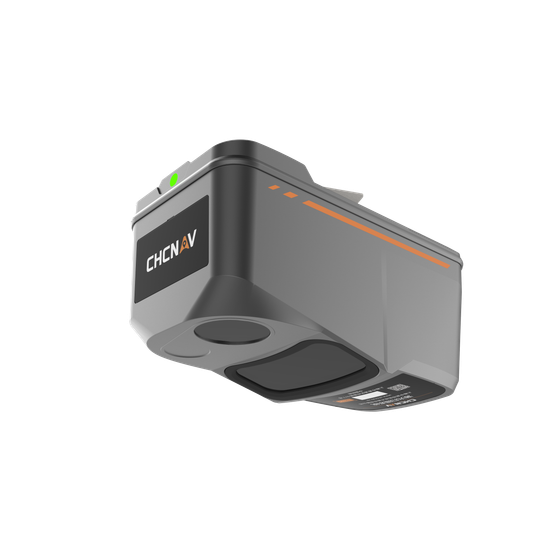

CHCNAV's "AA9" LiDAR for drone surveying
CHCNAV manufactured LiDAR "AA9", drone "X500"
High-end performance at less than half the cost. UAV LiDAR 'CHCNAV AA9' suitable for public surveying.
"I want to introduce high-precision laser surveying, but cost is a barrier," and "I am struggling to obtain surface data in forested areas." The latest UAV LiDAR from CHCNAV, the 'AlphaAir 9 (AA9),' solves these challenges. This product, offered by SkyLink Japan, features a lightweight body of 1.45 kg, with long-range scanning of up to 700 meters and high-speed performance of 600,000 points per second. It provides "public surveying level" accuracy comparable to high-end machines at an overwhelming introduction cost.
Inquire About This Product
basic information
■ Main Features of AA9 - High density and high transmittance: Supports up to 6 echoes, accurately capturing the ground surface even under dense vegetation. - Usable for public surveying: Boasts a relative accuracy of 5mm and a system accuracy of 2-5cm, enabling the creation of high-precision DEM/DSM. - Equipped with a surveying camera: Built-in 26MP surveying camera generates high-resolution full-color point clouds. - Includes analysis software: The trajectory analysis and point cloud generation software "CoPre" comes with one free license. Annual renewal fees are also free. - Compatible with various drones: Can be mounted on CHCNAV's "X500" and DJI's "M300RTK, M350RTK." ■ Building a Perfect Ecosystem To maximize the capabilities of the AA9, we also recommend using it in conjunction with the following products. Surveying Drone 'X500': Can be attached to the AA9 with one touch. No separate GNSS antenna or wiring is required. Covers a wide area with a maximum payload of 5kg and a long flight time of up to 58 minutes. Visual GNSS Receiver 'i93': Supports base station mode. Ideal for establishing reference points on the ground and supplementary surveying. Equipped with a camera, it allows for intuitive stakeout while "looking at the screen."
Price range
Delivery Time
Applications/Examples of results
Public Survey Forest Survey Disaster Site Investigation Power Line Inspection Please feel free to contact us.
