A simple circuit with low noise and high resolution. A compact DC power supply that does not compromise basic performance even at a low cost.

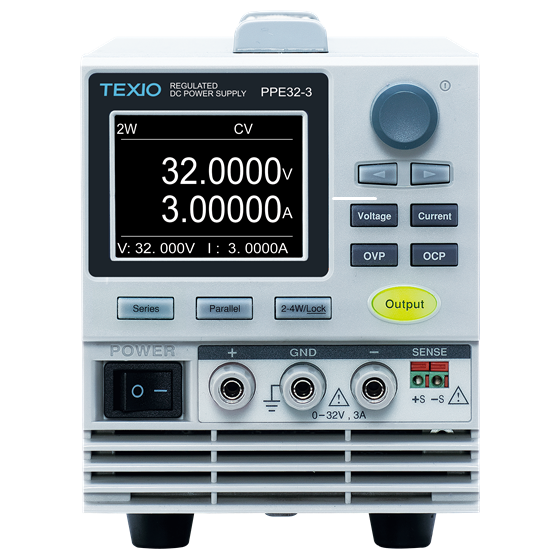

The "PPE series" is a lightweight and highly stable DC power supply. It features a 2.4-inch TFT-LCD panel that allows for intuitive monitoring of voltage and current settings as well as operational status. With a low-noise design using a temperature-controlled fan, voltage drop compensation through remote sensing, and high-precision settings in units of 1mV/0.1mA, it is suitable for a wide range of applications from research and development to educational purposes.
Inquire About This Product
basic information
● 2.4-inch color LCD display capable of simultaneous display of set values and measured values during output ● Setting resolution: 1mV/100μA, Measurement resolution: 100μV/10μA ● Low ripple noise: ≦0.5mVrms, Transient response characteristic: ≦100μs ● Remote sensing function ● OUTPUT ON/OFF switch ● OVP: Over Voltage Protection, OCP: Over Current Protection, OTP: Over Temperature Protection, Reverse Polarity Protection, Key Lock feature ● Forced air cooling with front exhaust by fan * The Series and Parallel keys on the panel are not available in the current version.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
For more details, please contact us or download the catalog.
catalog（1）
Download All Catalogs
News about this product（2）
Company information
Texio Technology is a manufacturer of DC stabilized power supplies and electronic/electrical measuring instruments. Including measuring instruments under the Trio and Kenwood brands, we have over 50 years of history and achievements in our business. Our main products include well-established general-purpose measuring instruments such as DC stabilized power supplies, electronic load devices, oscilloscopes, multimeters, and function generators, as well as custom power supply units tailored to meet individual customer needs. We create valuable power and measuring instruments for the next generation and support our customers from product development to production and repair.
