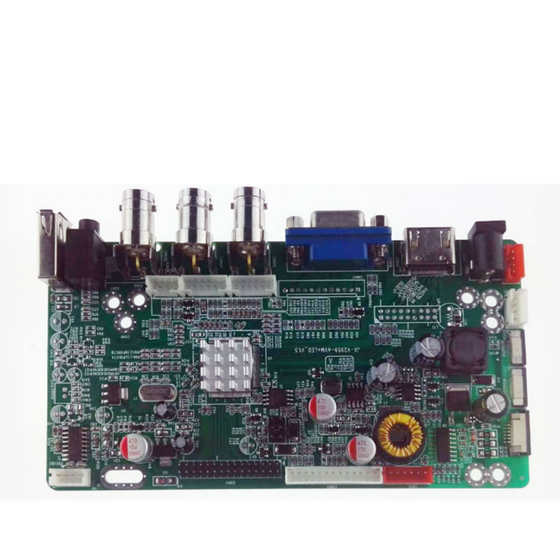

LCD control board compatible with HDMI/VGA/AV, LVDS output LCD.
RZY-RS10AVH01 V1.0
HDMI, VGA, and AV to LVDS on a single board.
■ Input Interface HDMI input (supports 1080P Full HD input) VGA input (supports analog RGB input) USB (for media input) 2 × CVBS inputs (composite video) 1 × CVBS output (composite output) * Designed with a universal control board that supports multiple video systems. ■ Output Interface LVDS output (for driving LCD panels) Built-in backlight inverter (backlight power control) ■ Supported Screens Compatible with 10.1" to 55" class screens * The applicable range varies depending on panel size and resolution. ■ Screen Resolution Supports up to Full HD (1920×1080) * Capable of high-definition LCD panel display with 1080P input support. ■ Additional Features Supports various video inputs (HDMI / VGA / CVBS) Compatible with LVDS connected LCD panel driving Built-in backlight power control function
Inquire About This Product
basic information
ItemSpecification Product NameUniversal Security 1080P HD VGA LCD Monitor Control Board InputHDMI / VGA / USB / 2 × CVBS OutputLVDS / CVBS Maximum Resolution Supported1080P (1920×1080) Supported Panel Size10.1″ ～ 55″ Backlight ControlBuilt-in Inverter ApplicationLCD Panel Control Board (Embedded Use) * The pin arrangement and voltage requirements of actual panels need to be individually verified.
Price information
Supply Conditions This product is a control board designed for device integration and mass production applications. Supply is primarily based on mass production, including confirmation of compatible panels and firmware adjustments. For requests for small quantities (1-2 units), we will accommodate them for evaluation and verification purposes, and the price will be set higher. Additionally, for LCD panels that are not part of our standard settings, we will charge for the adjustment of new firmware. Please consult us in advance regarding the feasibility of support, adjustment details, and conditions. Depending on the circumstances, we may refuse to ship samples.
Price range
P2
Delivery Time
※Sample: For adjusted configuration, approximately 7 days. Mass production: Adjusted configuration: approximately 7 to 15 days. New adjustments: approximately 30 days. *All shipments will be after our inspection.
Applications/Examples of results
Applications Driving LCD panels from multiple video inputs such as HDMI/VGA Control boards for embedded monitors/industrial display devices Prototyping and mass production of low-cost LCD display devices Security monitors, POS, exhibition displays, in-device displays
