A robot hand the same size as a human hand.

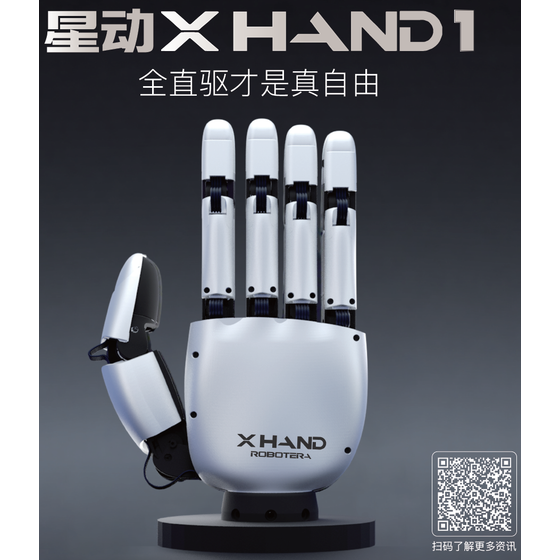

XHAND1 is a robot hand the same size as a human hand, capable of a maximum grip strength of 80N and can hold up to 25kg. It is designed with ultra-compact actuators with backdrive at each joint, making it resistant to damage even in the event of unexpected impacts.
Inquire About This Product
basic information
【Specifications】 - Weight: 1,100g - Size: 191 mm x 94 mm x 47 mm - Degrees of Freedom: 12 Thumb: 3, Index Finger: 3, Middle Finger: 2, Ring Finger: 2, Little Finger: 2 *Index finger has a swing angle of ±15° - Sensors: 5 locations (one for each finger) *Each finger is equipped with a tactile array capable of 270° measurement - Control Modes: Position control, current loop control, force position control - Communication: EtherCAT: 100MHz / RS485: 3MHz - Lifespan: 1 million cycles (grasping motion in a no-load state) - Temperature: -20°C to 60°C - Voltage: 24V to 72V
Price information
XHAND1 is 2.5 million yen.
Delivery Time
※If in stock, it will take about 10-15 days; if out of stock, it will take about 1-2 months.
Applications/Examples of results
Humanoid robots, robotic arms, etc.
