Waveguide keychain-type RFID tag that uses rings and keys for communication.
PMT-05K/M8
A small yet highly sensitive keychain-type RFID tag.

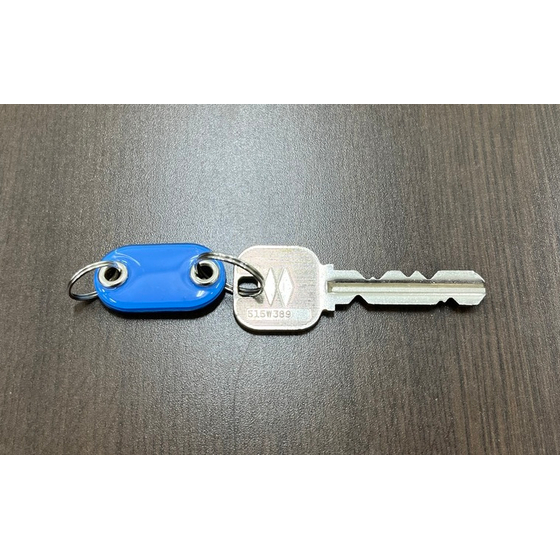

The PMT-05K is a keychain-type RFID tag. It is a product that uniquely balances "small size" and "readability performance." 【Features】 ■ Utilizes metal fittings as a pseudo antenna The tag body is compact at a total length of 32mm, yet when metal rings or keys are hung from it, they function as a pseudo antenna, enhancing communication distance. ■ High durability for long-term use The PVC coating protects the IC chip and ensures waterproofing. It has high durability, making it ideal for asset management, including keys. For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Model Number: PMT-05K/M8 ■Dimensions (D×W×H): Approximately 18×32×4.2mm (D×W×H) *excluding the metal part ■Weight: Approximately 3.7g *including the double ring ■Operating Frequency: 920MHz band (Japan frequency band) ■Embedded IC: Impinj M830 ■Communication Protocol: Compliant with EPCglobal Class1 Gen2 (ISO/IEC 18000-63) ■EPC: Up to 128 bits ■Operating Temperature: -10 to +50℃ ■Mounting Method: Double ring (included with the tag)
Price range
Delivery Time
Applications/Examples of results
- Management of key issuance and return in industries such as real estate, security, and transportation - Management of vehicle and motorcycle keys - Management of rental items such as cameras - Management of other small IT devices that are difficult to attach general RFID tags to, etc.
catalog（1）
Download All Catalogs
Company information
Phoenix Solutions Co., Ltd. is a company specializing in the research and development, design, and manufacturing of RFID tags, antennas, and reader-writers. We have a strong expertise in antenna design and offer high-performance RFID products, such as the special RFID tags in the "PMT series" that utilize metal for communication, and RFID tags that use carbon black in tire rubber for communication. Our cutting-edge technology aims to make a significant contribution to IoT both domestically and globally.
