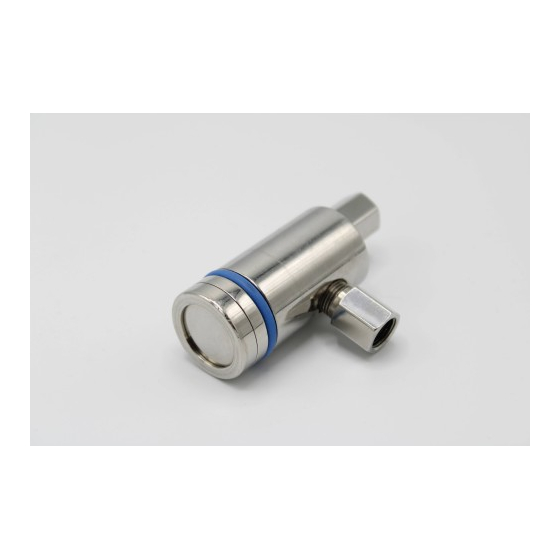

Compact and highly reliable pressure detection.
PMC's compact pressure transmitter features a space-saving design that is easy to install even in limited spaces, while achieving high measurement accuracy. Its stable pressure detection performance ensures reliable operational management across various industrial applications. With a robust construction, it delivers stable performance over the long term, even in harsh operating environments.
Inquire About This Product
basic information
Main Features - Low-cost, 1:1 linear output pneumatic pressure transmitter - High accuracy: ±0.1 psig - Clogging prevention and corrosion-resistant design - Compact design (1-inch outer diameter) allows for space-saving installation - Ideal for paper pulp equipment and similar process industries Main Specifications (PT Series) Measurement pressure range (zero-based) Accuracy Operating temperature range Material - Standard: 100 psig - ±0.1 psig (full range) - Standard: 90℃ - All stainless steel construction - Options: 10 / 15 / 30 / 60 / 150 psig Overpressure resistance - Options: 200℃ - Wetted parts: 316L stainless steel - Please consult for other ranges - Maximum 250 psig or full vacuum Air consumption - 3 SCFH (approximately 0.085 m³/h) Mounting method - 316L stainless steel welded nipple (standard included) - PT series also compatible with threaded nipples
Price range
Delivery Time
Applications/Examples of results
The PT series small pneumatic pressure transmitter from PMC Corporation is designed for various process industries, including paper and pulp factories. It is ideal for pressure measurement in environments prone to clogging of gauges and sealing parts, featuring a structure that is resistant to clogging and excellent in corrosion resistance. Its compact design with a diameter of 1 inch allows for flush mounting in pipes with an inner diameter of 2 inches or more. It prevents the stagnation (pockets) that can be problematic with traditional flange-mounted pressure transmitters and chemical seals, achieving stable pressure measurement. Despite its low cost, it offers a 1:1 linear output, contributing to high-precision and reliable pressure monitoring.
catalog（1）
Download All Catalogs
Company information
KGK Engineering Co., Ltd. is expanding its business by focusing on after-sales service and engineering for machine tools, imported industrial machinery, environmental-related equipment, and imported paper machinery. We strive to meet our customers' comprehensive needs by providing engineering services for systematization and labor-saving by combining after-sales service and various machines, as well as introducing tools, measuring instruments, software, and other products related to production.
