The water jet method reliably rewinds all types of paper.

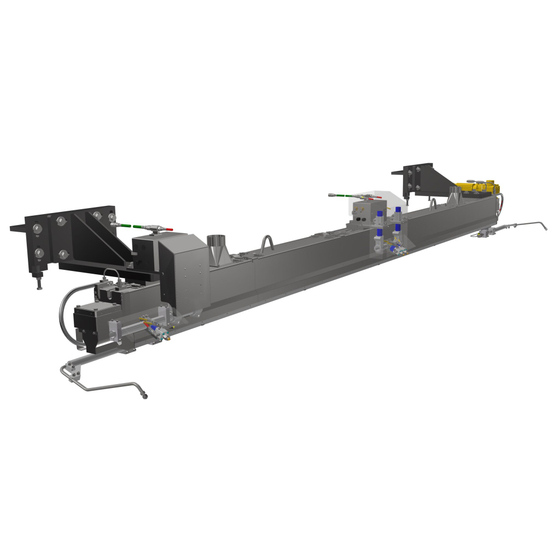

Reel-Jet is a versatile water jet turn-up system that accommodates a wide range of products, from tissue and printing paper to cardboard, liner board, kraft paper, pulp, and specialty papers. It is compatible with most reel formats and paper types, ensuring stable operation throughout the production line. With its advanced reel change mechanism, it allows for the customization of cutting profiles according to applications, such as cross cuts for heavy paper, parallel cuts for lightweight tissue, and other special cutting methods, thereby improving turn-up efficiency while minimizing spool core loss.
Inquire About This Product
basic information
Device Configuration Details - Reel-Jet Beam (1 set) - Sealant Application System (1 set) - High-Pressure Piping * The length of the piping will be calculated based on the installation position of the high-pressure pump. Additional piping may be required depending on the installation conditions (to be addressed separately).
Price range
Delivery Time
Applications/Examples of results
Main Features and Specifications Overview - Utilizes a water-soluble and repulpable sealant for turn-up, suitable for consumer goods applications - Highly operable interface with multiple settings available - Full-open structure side panels for easy maintenance and inspection - High durability due to stainless steel construction - Equipped with diamond cutting nozzles for stable jet performance and long lifespan Performance and Effects - Symmetrical cutting profile significantly reduces wrinkles compared to tape reel switching methods, minimizing spool core loss - Greatly reduces the scattering of paper pieces and dust from the base roll - Core loss: typically less than 100 linear meters - Reel switching efficiency: over 98% for paper products, over 95% for hygiene paper - Improvement in reel switching efficiency can reduce production costs by 0.5% to 2% (investment payback period: 6 to 12 months)
catalog（1）
Download All Catalogs
Company information
KGK Engineering Co., Ltd. is expanding its business by focusing on after-sales service and engineering for machine tools, imported industrial machinery, environmental-related equipment, and imported paper machinery. We strive to meet our customers' comprehensive needs by providing engineering services for systematization and labor-saving by combining after-sales service and various machines, as well as introducing tools, measuring instruments, software, and other products related to production.
