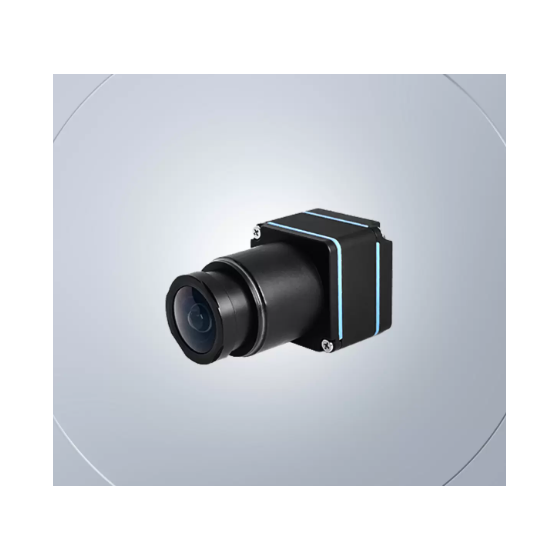

Onboard VIO camera for autonomous robots, featuring a 1/2.42" CMOS sensor (Sony ISX031), GMSL2 (POC).
**oToBrite oToCAM269IMU-C120M Features** - Robustness and durability to withstand harsh environments - Complies with IP67 and IP69K standards: excellent dust and water resistance, vibration resistance - De-fogging function that keeps visibility clear even in humid environments or sudden changes in conditions - Extended operating temperature range: supports -40℃ to +85℃ - High-precision sensing through IMU integration - Significantly improves 3D positioning accuracy under harsh conditions such as low light, high-speed driving, and complex environments - High-precision sensor fusion achieved by synchronizing image data and IMU signals at the millisecond level for onboard VIO cameras
Inquire About This Product
basic information
Specifications Image Sensor: CMOS (Sony ISX031) Optical Format: 1/2.42" Pixel Size: 3.0 μm (H) × 3.0 μm (V) Effective Pixel Count: 2.95M (1920 (H) × 1536 (V)) Output Interface: GMSL2 with POC Output Format: MIPI 4lane YUV422 8bits Color Filter Array: RGGB Operating Voltage: DC 6~12V Startup Time After Power On: Within 200ms Serializer: MAX9295 Frame Rate: 30fps (depending on settings) Operating Temperature: -40 to 85℃ Storage Temperature: -40 to 95℃ Dust and Water Resistance: IP67/IP69K Field of View (H): 120.6° Lens F No.: F2.0 Infrared Cutoff Wavelength: 400 ~ 700 nm DOF/ Object Distance: 1M to infinity @ Infinity Resolution (Center/Corner): TV Lines Center ≧1000, Corner (0.65F) ≧900 Dimensions: 28 x 35 x 45.7 mm Weight: 50 g
Price information
Please feel free to contact us.
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
Development purposes for autonomous vehicles, in-vehicle testing purposes, and development purposes for advanced driver-assistance systems (ADAS).
