A compact device that can simultaneously monitor and collect data from two high-speed CAN channels!

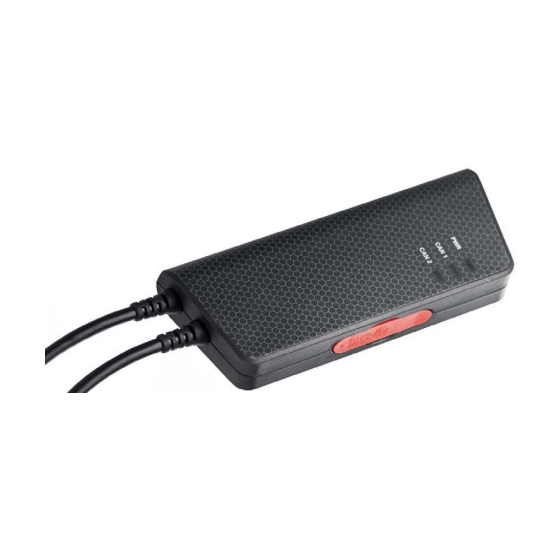

The "Kvaser Memorator 2xHS v2" is a dual-channel CAN bus interface and a standalone data logger. In standalone mode, it records data to an SD card, while in interface mode, it connects the CAN network to a PC in real-time via USB. Due to its compact design, it can serve as a complete flight recorder when used as a data logger. It is also possible to set triggers and filters using an easy-to-use configuration program, and these can be recorded on a standard SD card (included). 【Features】 ■ Monitors two CAN channels simultaneously with one device ■ Quick and easy plug-and-play installation ■ Stores CAN messages with timestamps in 100 microsecond increments ■ Supports silent mode for analysis tools, allowing monitoring of the bus without interfering with the process ■ Galvanic isolation *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Other Features】 ■ Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers ■ SD slot x1 compatible with SD flash disks (currently up to 1GB) ■ High-speed CAN connection (compliant with ISO 11898-2) x2, up to 1Mbps ■ Connects to PC via standard USB 2.0 connection ■ Built-in real-time (calendar) clock with battery backup ■ Logger status displayed by 3 LEDs visible from the outside ■ Compatible with J1939, CANopen, NMEA 2000, and DeviceNet *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Examples of Use】 ■ Data monitoring and collection of CAN bus ■ Data logging in standalone mode ■ Real-time CAN-PC connection in interface mode *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Renas Corporation imports products from nine overseas companies and supports sales and technology to domestic trading companies. We handle various products necessary for data analysis and measurement focused on Controller Area Network (CAN), including CAN interfaces, data loggers, CAN input/output analog/digital measurement modules, and CAN/LIN protocol analyzers. Please feel free to contact us if you have any inquiries.
