Precision Machining Compatible Z-Chip / Tilt-Compatible Air Bearing A-523

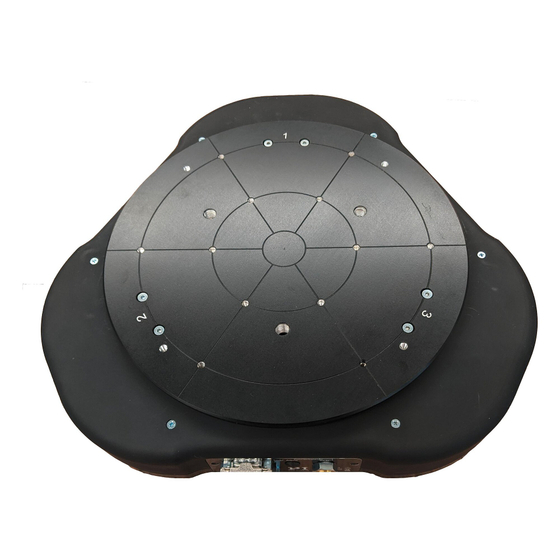

PIglide High Precision Z Chip/Tilt Air Bearing Stage A-523
A high-precision air bearing stage capable of 3-axis motion on a single thin platform.
In the precision machining industry, high-precision positioning in micro-machining is a crucial factor that affects product quality and yield. Particularly in the assembly and inspection of fine components, nanometer-level positional accuracy is required. Conventional stages have faced challenges such as space constraints and accuracy degradation due to minute vibrations. Our thin air bearing Z Tip/Tilt stage addresses these issues and contributes to improving the quality of precision machining. 【Application Scenarios】 - Positioning in micro-machining - Assembly of precision parts - Inspection processes 【Benefits of Implementation】 - Quality improvement through high-precision positioning - Space-saving design due to thin profile - Enhanced product lifespan through smooth operation without friction
Inquire About This Product
Related Videos
basic information
【Features】 - Travel range of ±2.5 mm on the Z-axis and ±1° on the θX and θY axes - Load capacity of 8 kg - Platform diameter of 250 mm - Height: 60 mm - Frictionless motion platform 【Our Strengths】 Based on over 50 years of experience at our headquarters in Germany and 30 years of experience at our Japanese subsidiary, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide, leveraging our precision control technology. With a rich lineup and technical expertise, we offer optimal solutions tailored to our customers' needs.
Price range
Delivery Time
Applications/Examples of results
Wafer inspection Fiber positioning Optical system positioning Flat screen inspection Maskless lithography MicroLED manufacturing and other high-precision applications
catalog（1）
Download All Catalogs
Company information
The German headquarters, with over 50 years of experience and 30 years as a Japanese corporation, presents new solutions from PI, a company specializing in precision positioning products. We offer the world's number one piezo stages and actuators, as well as hexapod positioning products. Additionally, we are enhancing our lineup of linear motor-driven products and high-precision air bearing stages. In positioning, attention to the foundation is also crucial, and we provide granite bases, enabling us to propose composite systems as well. Please take a look at our diverse lineup that provides cutting-edge technology to production sites around the world, advanced equipment, and various fields of cutting-edge research.
