Pressure-resistant explosion-proof liquid filling machine for the chemical industry.
TFM Series
Support for safe filling operations of chemical products. Improve filling operation efficiency in explosion-proof areas.
In the chemical industry, safety is the top priority in filling operations. In environments handling flammable and explosive products, the introduction of filling machines with explosion-proof capabilities is essential to prevent potential accidents. Using inappropriate filling machines increases the risk of fire and explosion, which could lead to serious accidents. All electrical equipment used in our pressure-resistant explosion-proof liquid filling machines is certified explosion-proof, ensuring compliance with fire safety applications and other regulations. 【Benefits of Implementation】 - Achieving safe filling operations in explosion-proof areas - Improved work efficiency - Compliance with legal regulations
Inquire About This Product
basic information
【Features】 - Compatible with various containers such as 18L cans, plastic cans, drum cans, and IBC containers. - Full pressure-resistant explosion-proof specifications eliminate the need for barriers like intrinsic safety explosion-proof systems, reducing construction costs during installation with simplified wiring. - Certified by domestic explosion-proof testing (TIIS certification), allowing for safe use in explosion-proof areas. - The wetted parts are compatible with various materials, including stainless steel and fluoropolymer (PTFE). - Drum can and container-compatible types can also be manufactured. 【Our Strengths】 We have a proven track record in various fields, including general weighing instruments, pressure-resistant explosion-proof liquid filling machines, and filling systems. By conducting hard design using CAD, designing and manufacturing control panels, developing PLC software, and handling assembly, adjustment, and maintenance all in-house, we can provide flexible products and services tailored to our customers' needs.
Price information
It varies by model, so please feel free to consult us.
Delivery Time
※120 days (may vary depending on specifications, so please inquire each time)
Applications/Examples of results
【Delivery Fields】 Petrochemical-related Chemical substances and chemical products-related Fragrance and food-related Coating-related Other plants with hazardous locations, etc.
Line up（8）
| Model number | overview |
|---|---|
| TFM-30 Series | This is a liquid measuring and filling device compatible with small containers such as 18L cans and plastic containers. We offer various specifications, including long nozzle and PTFE nozzle options. |
| TFM-300 Series | This is a liquid measuring and filling device compatible with drum cans. We have many successful cases with metal drums, chemical drums, and drums with inner bags. We offer various options including long nozzle specifications and PTFE nozzle specifications. |
| TFM-1500 Series | This is a liquid weighing and filling device compatible with medium-sized transport containers such as IBC containers. We offer various specifications, including long nozzle and PTFE nozzle options. |

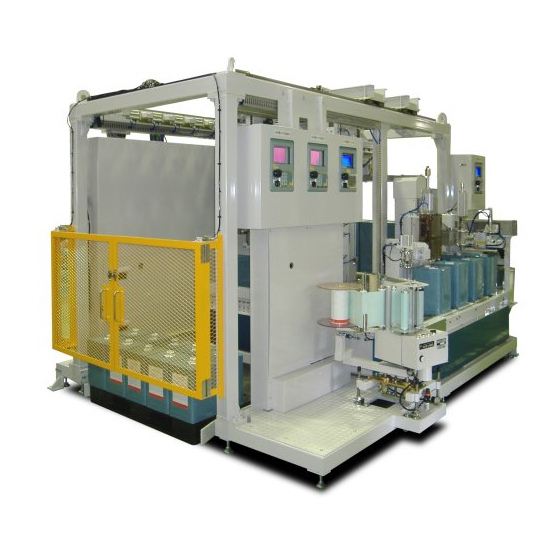

| TFM-30APX | It is a fully automatic liquid filling machine compatible with 18L cans. It automatically performs depalletizing, cap removal, filling, weighing, cap installation, labeling, cap installation confirmation, and palletizing. |
| TFM-300AX | This is a fully automatic liquid filling machine compatible with drums. It automatically detects the position of the opening, uncaps, fills, and caps. |
| TFM-1500SX-SA | This is a filling machine that accommodates both medium-sized transport containers such as IBC containers and drums. It also has a long nozzle specification suitable for filling foamy liquids. |
| TFM-300SX-CB | It is an explosion-proof liquid filling machine compatible with both one-dou cans and drum cans. |
| TFM-501-MN | This is a super high-precision filling device that achieves a filling accuracy of ±0.1g (during tests conducted in our company). Explosion-proof options are also available. |
catalog（4）
Download All Catalogs
Company information
Our company has a proven track record in various fields, including general weighing instruments, pressure-resistant explosion-proof liquid filling machines and filling systems, liquid and powder filling and weighing, and image processing systems. Since we handle hard design using CAD, control panel design and manufacturing, PLC software development, assembly, adjustment, and maintenance all in-house, we can provide flexible products and services tailored to our customers' needs. **Main Products** Digital platform scales Pressure-resistant explosion-proof weighing instruments Pressure-resistant explosion-proof liquid filling machines and filling systems FIBC scales (FIBC filling devices) Coil weighing machines Truck scales Portable vehicle weight scales Tank scales and hopper scales LP gas filling machines Sorting and image processing systems **Delivery Fields and Categories** Chemical industry-related, chemical products-related, steelmaking-related, agriculture sector, livestock sector, etc.
