Supports notching shapes with water jet processing.

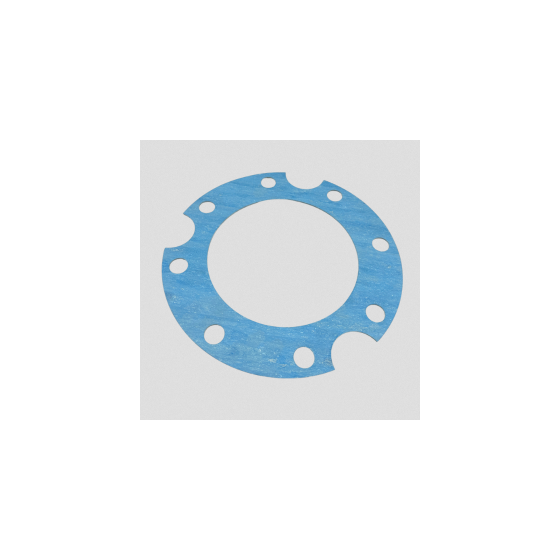

■Overview of Processing Example Product Name: Packing for Well Dimensions: Outer Diameter φ258 × Inner Diameter φ165.2 (P224) This processing example is for a packing used in the flange part of well equipment. It features a notched shape on the outer circumference and has eight evenly spaced bolt holes, designed with consideration for the installation position. For customers in the well equipment-related field, water jet processing is employed to ensure dimensional accuracy and shape reproducibility.
Inquire About This Product
basic information
■Product Features (No.6500) No.6500 is a general-purpose joint sheet primarily made of non-asbestos fibers and heat-resistant, oil-resistant rubber (NBR). It offers excellent economic efficiency and is compatible with a wide range of fluids, including water, oil, and air. It is commonly used as a seal in piping and equipment across various industries and complies with JIS standards for water supply. However, caution is required for conditions exceeding 100°C. ■Processing Method (Water Jet Cutting) Water jet cutting is a method that uses high-pressure water to cut materials. It processes by spraying high-pressure water. The injection nozzle can be changed according to the processing material, allowing for the production of high-quality products in a short time. Additionally, the dimensional tolerances achieved through traditional manual processing are significantly improved, resulting in stable processing accuracy. The taper of cut surfaces from press processing can also be improved with water jet cutting.
Price range
Delivery Time
Applications/Examples of results
■Q&A Q: Can you accommodate gaskets with cut-out shapes? A: We can handle shapes that include cut-outs and multiple holes. Q: Can I place an order even if the quantity is small? A: Since we do not use molds, we can accommodate small lots and single-item processing. Q: Can I consult about material selection? A: We can assist with material selection based on usage conditions and fluids. ■Processing of Well Gaskets at Daiko At Daiko, we offer proposals for material selection and processing methods tailored to applications and installation conditions, starting with gaskets for well equipment. We can also accommodate inquiries for prototypes and custom shapes using water jet processing.
catalog（2）
Download All Catalogs
Company information
Daiko is a manufacturer specialized in processing various industrial products, including gaskets and packing. With industry-leading processing equipment, including one of Japan's largest water jet cutting machines, and a wide range of materials such as joint sheets, rubber, resin, and metal, we meet our customers' diverse needs. Leveraging the technology and experience we have cultivated over 50 years, we provide high-quality, short-lead-time, and low-cost products to contribute to solving our customers' challenges. To respond to our customers' varied needs, Daiko's production bases are equipped with various processing facilities. Among them, the water jet cutting machines, with a total of four installed at our Osaka headquarters and Tokyo branch, boast one of the largest scales in the country. The maximum processing range is W4,000 × L5,500 mm, allowing for the high-precision manufacturing of large-diameter gaskets and packing. By maximizing material efficiency, we achieve the provision of 'high quality at low cost.'
