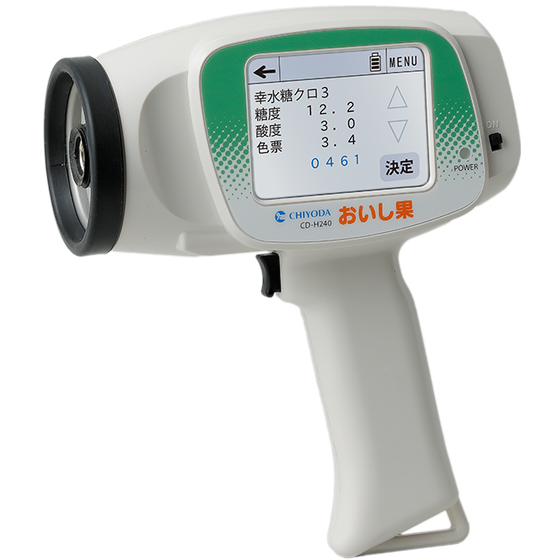

Instantly measure sugar content in 0.5 seconds without cutting.
It is a non-destructive sugar content meter. 【Product Features】 ■ Non-destructive measurement: It allows for measuring sugar content from the outside without cutting into valuable crops. ■ Overwhelming measurement speed: Instant measurement in just 0.5 seconds dramatically improves the efficiency of sorting work. ■ Capability for large fruits: It standardly supports measurements of melons and small watermelons, which were difficult with conventional devices. ■ Strong mobility on-site: Compact and lightweight design requires no warm-up. It is easy to carry and can be used immediately in any location. ■ Flexible data operation: The Excel-based "Calibration Curve Creation Software (optional)" allows for customization according to unique varieties. *A Windows PC is required. 【For those with the following challenges】 ■ Want to reduce quality variation in shipped products and enhance brand value. ■ Want to decrease waste loss from sampling inspections. ■ Want anyone on-site to be able to measure easily and quickly. 【Trial Information】 In response to requests to "try it out to see if it fits our environment," we offer rental units that allow you to choose with confidence before implementation. *For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Measurement method: Near-infrared filter spectroscopy ■ Measurement items: Sugar content, hardness, acidity (citrus only), dry matter content (pumpkin, sweet potato) ■ Measured fruits: Citrus, melon, small watermelon, tomato, grape, peach, pear, strawberry, mango, apple, persimmon, kiwi, pumpkin, corn, sweet potato, etc. ■ Measurement time: 0.5 seconds ■ Number of measurements: 2000 times (when fully charged) ■ Data storage capacity: 2000 entries ■ Measurement accuracy: Based on calibration curve accuracy ■ Calibration method: White standard calibration method ■ Dimensions: 74×180×215mm ■ Weight: 600g ■ Operating environment: Ambient temperature 5–35℃, humidity 20–90% RH, no condensation ■ Calibration curve Choose between trial calibration curve or dedicated calibration curve (sold separately) *At least one is required for measurement. ■ Optional equipment - Wireless printer - Thermal roll paper - Roll label paper - Small fruit adapter - Computer connection cable - Additional calibration curves - Calibration curve creation software - Data communication tool - Simple tabletop stand - Cleaning kit *For more details, please refer to the catalog or feel free to contact us.
Applications/Examples of results
■I want to understand the optimal harvest timing. ■I want to guarantee sugar content and sell at a high price. *For more details, please refer to our catalog or website, or feel free to contact us.*
Company information
Chiyoda Electronic Industry Co., Ltd. is a company engaged in the manufacturing and sales of wire harnesses and Oishi Fruit (non-destructive fruit measurement devices). Utilizing over 40 years of harness technology know-how and a global network of domestic and overseas production facilities, we provide products that earn the trust and satisfaction of our customers.
