Contributing to the efficiency of FPD inspection with high resolution and high-speed imaging.
In the FPD inspection industry, there is a demand for the rapid and accurate detection of minute defects to efficiently manufacture high-quality products. Particularly in the context of increasingly high-definition FPDs, it is crucial not to overlook small defects. Traditional inspection methods have limitations in detection accuracy and inspection speed, which have been factors in reducing production efficiency. Our 65-megapixel CoaXPress area camera balances high resolution and speed, contributing to solving challenges in FPD inspection. 【Application Scenarios】 - Appearance inspection on FPD manufacturing lines - Detection of defects in FPDs - Detailed inspection using high-resolution images 【Benefits of Implementation】 - High-precision detection of minute defects - Reduction in inspection time - Improvement in production efficiency
Inquire About This Product
Related Videos
basic information

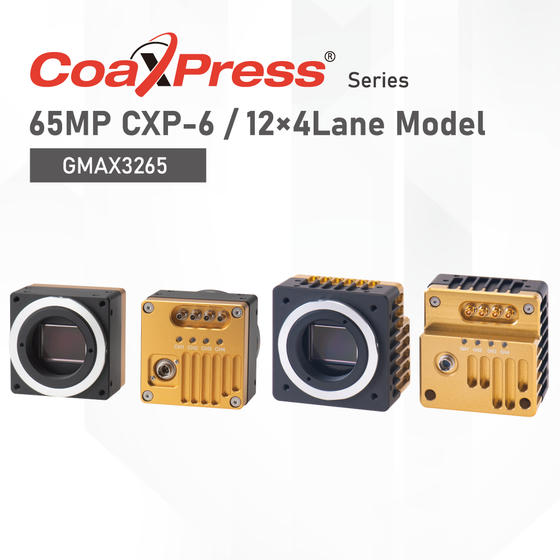

**Features** - Equipped with Gpixel's CMOS sensor GMAX3265, capable of outputting up to 71fps with CXP-12×4Lane connection - Fanless design eliminates the need for cooling fans or heat sinks - Available in CXP-6×4 lane model and CXP-12×4 lane model - Lens mount options include F/M42 - Connector orientation can be selected from the rear (straight model) or top (angle model) **Our Strengths** - Actively adopting next-generation key devices to achieve low power consumption and low heat generation - Mechanism design and production technology that achieves a high balance of compactness, heat dissipation, and mass production - Electrical design that maximizes the performance of various sensors and ensures industrial quality - Cost competitiveness leveraging the purchasing power and procurement capabilities of our parent company BOPIXEL - Advanced manufacturing combined with Japan's precision and delicacy
Price range
Delivery Time
Applications/Examples of results
Semiconductor front-end/back-end visual inspection, final visual inspection of semiconductor components, visual inspection of assembled boards, various alignments, and industrial image processing focused on semiconductors and electronics.
Line up（8）
| Model number | overview |
|---|---|
| BC-GM65M6X4H | 65MP / mono / 35.5fps / CXP-6 / F/M42 mount / DIN connector / straight model |
| BC-GC65M6X4H | 65MP / color / 35.5fps / CXP-6 / F/M42 mount / DIN connector / straight model |
| BC-GM65M6X4H-AN | 65MP / mono / 35.5fps / CXP-6 / F/M42 mount / DIN connector / angle model |
| BC-GC65M6X4H-AN | 65MP / color / 35.5fps / CXP-6 / F/M42 mount / DIN connector / angle model |
| BC-GM65M12X4 | 65MP / mono / 71fps / CXP-12 / F/M42 mount / MicroBNC connector / straight model |
| BC-GC65M12X4 | 65MP / color / 71fps / CXP-12 / F/M42 mount / MicroBNC connector / straight model |
| BC-GM65M12X4-AN | 65MP / mono / 71fps / CXP-12 / F/M42 mount / MicroBNC connector / angle model |
| BC-GC65M12X4-AN | 65MP / color / 71fps / CXP-12 / F/M42 mount / MicroBNC connector / angle model |
catalog（5）
Download All Catalogs
Company information
We focus on the design, development, manufacturing, and sales of high-speed, high-resolution, and highly reliable machine vision cameras primarily using CoaXPress and CameraLink. In addition to developing standard products, we also offer development and customization tailored to customer requests. All camera design and development is carried out by our Japanese staff, ensuring design and production techniques that guarantee delicate and highly reliable standards in Japan, while integrating the dynamic action and speed of China to provide competitive products. At Japan Bopixel, we have successfully become the first camera manufacturer to utilize Ultra Low Power FPGA instead of the standard FPGA adopted by the majority of camera manufacturers. This Ultra Low Power FPGA reduces power consumption by over 50% compared to similar class FPGAs, significantly lowering power consumption and heat generation in cameras by addressing the heat source at its root. By actively adopting these next-generation key devices, we are taking a new approach to the heat generation issues that have traditionally been a challenge.
