While utilizing the properties of resin, it blocks over 99.99% of electromagnetic waves! Lightweight, high adhesion, and high shielding. Ideal shielding plating for resin enclosures.

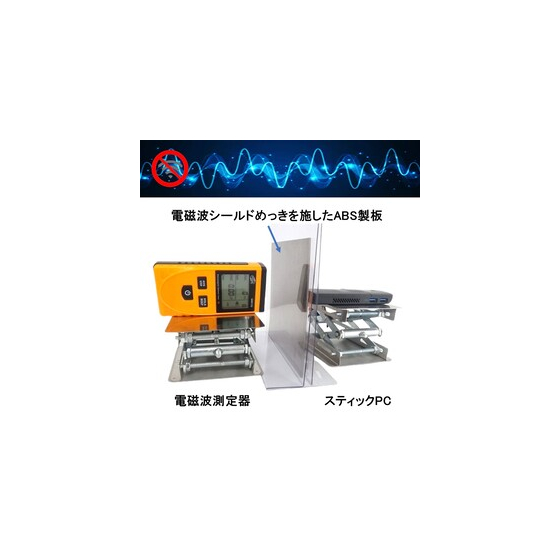

This is a plating technology that leverages the lightweight and molding flexibility of resin while providing high electromagnetic wave shielding performance. By using copper (Cu) or nickel (Ni) plating, it reflects electromagnetic waves and achieves a shielding effect of over 99.99% (over 80dB). It accommodates a wide frequency range from low to high frequencies and can effectively block both electric and magnetic fields. It has excellent adhesion, eliminating concerns about peeling like a film, and also boasts long-term reliability. Two types are available based on application: single-sided plating and double-sided plating, contributing to designs that do not require shielding housings. Depending on the application, you can choose between single-sided and double-sided plating.
Inquire About This Product
basic information
- Shielding performance: Over 80dB (electromagnetic wave shielding rate over 99.99%) - Supported frequency: Compatible with low frequency (hundreds of Hz) to high frequency (up to several GHz); confirmed data for high frequency band up to 6GHz - Supported electromagnetic fields: Compatible with both electric and magnetic fields - Plating types: Copper (Cu), Nickel (Ni) - Structure: Available in single-sided or double-sided plating - Compatible materials: General-purpose resins such as ABS, PC, engineering plastics like PPE, CFRP, GFRP (other materials available upon consultation) - Features: High adhesion, difficult to peel off, good shape conformity - Optimal design of film composition and thickness according to application - Contributes to weight reduction and space-saving by eliminating the need for shielding housing *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
- Applications for high-frequency noise countermeasures in smartphones, tablets, and communication devices - Prevention of electromagnetic wave leakage and EMI countermeasures for microwave ovens, home appliances, and computers - Improvement of noise resistance in automotive electronic devices (ECUs, sensors, etc.) - Electromagnetic environment measures for railway-related equipment and industrial machinery - Shielding of low-frequency noise in power supplies, inverters, and power equipment - Applications for improving reception quality in radio, television, and satellite communication devices - Fields requiring a balance between lightweight resin housings and shielding performance - Cost reduction and reduction of component count through the reduction of shield cases - Applications for providing shielding to composite material parts such as CFRP and GFRP *For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Kyushu Denka conducts surface treatment of various metals and has established a research and development department to flexibly respond to advanced order requirements through multifaceted technical research. The specialized staff who work diligently on research here are an important presence that supports the company from a technical standpoint. They continue to challenge themselves in pursuit of cutting-edge technology that leads the plating industry.
