During the inspection, the workholding unit suppresses positional displacement, achieving stable measurements!

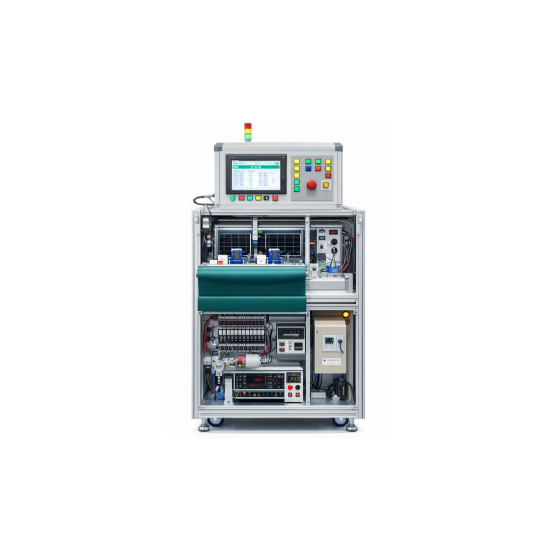

We would like to introduce the "Electric Inspection Machine" that we handle. The machine automatically conducts electrical inspections on the target work set by the operator, while maintaining the head unit in a predetermined positional relationship and rotating the magnetic body (rotor). The inspection results are determined as OK/NG and are displayed on the operation screen, with history management supported. It also accommodates product changeovers through barcode reading, achieving efficient inspection operations. 【Features】 - Stabilization of inspection quality through automation of electrical inspections - Realistic inspection conditions close to actual operation due to rotor rotation - Improved measurement reproducibility through position holding - Ensured traceability through history management of inspection results - Increased efficiency in multi-product operations through product changeover support - Reduced burden on operators and decreased inspection labor hours *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Connector Connection Unit: Connects the work terminal and measuring device via a probe to facilitate the exchange of electrical signals. ■ Inspection Box: Sets the unit work head and performs electrical testing while rotating the rotor. ■ Work Holding Unit: Clamps and holds the workpiece to suppress positional deviation during inspection. ■ Operation and Control Unit: Manages operation, settings, and history through the operation screen, and supports variety switching via barcode reading. ■ Safety and Notification Unit: Ensures safety and notifies abnormalities through emergency stops, buzzers, etc. *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
