Unwavering holding power with a minimal pitch of 1.27mm. SMT-compatible header with lock.

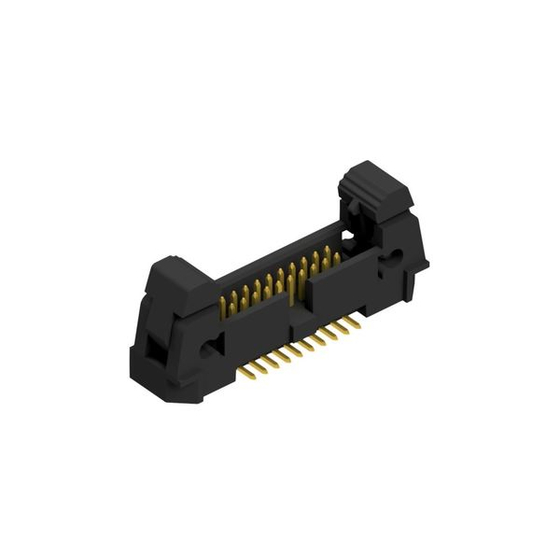

Our company, Aquas, is the official domestic distributor of the German global manufacturer Fischer Elektronik. "VSLV XX SMD G Series" 1.27mm pitch SMT box header (with locking mechanism) - It addresses the issues of 'connector disengagement' and 'incorrect insertion' that arise from miniaturization and high density of circuit boards. - The Fischer 1.27mm pitch box header features a strong locking lever and an anti-insertion guide. - It is an SMT type compatible with 260°C reflow, making it easy to integrate into automatic assembly lines. - We offer a range from 10 to 40 pins, along with compatible female connectors from the PVV series. 3D data is also available.
Inquire About This Product
basic information
【Product Specifications】1.27mm Pitch Locking SMT Box Header: VSLV SMD Series ■ Electrical Characteristics Nominal Voltage: 100 V DC Test Voltage: 300 V AC Insulation Resistance: >10⁷ Ω·m (High electrical isolation performance) Contact Resistance: High-reliability design that maintains low contact resistance ■ Mechanical Characteristics and Structure Contact Shape: □ 0.4 mm square pin (2-row configuration) Pitch: 1.27 mm Retention Feature: Equipped with a strong locking lever (physically prevents disconnection due to vibration and shock) Compatible Connector: Female connector PVV series and IDC socket for ribbon cables of the same grid Mounting Method: Surface Mount (SMT/SMD) ■ Material and Heat Resistance (Compatible with Automatic Mounting) Insulator Material: PBT resin (glass fiber reinforced, UL 94 V-0 flame retardant grade) Contact Material: Copper alloy Surface Treatment: Ni + ≥0.2 µm Au (Gold-plated specification) * Excellent corrosion resistance and conductivity Operating Temperature Range: -40°C to +105°C Reflow Heat Resistance: 260°C / 10 seconds
Price range
Delivery Time
Applications/Examples of results
Please feel free to contact us.
Line up（4）
| Model number | overview |
|---|---|
| VSLV 10 SMD G | 10 extremes |
| VSLV 20 SMD G | 20 extremes |
| VSLV 26 SMD G | 26 extremes |
| VSLV 40 SMD G | 40 extremes |
