Waterproof and dustproof with IP67 rating. Wireless industrial-grade measurement. Accurate posture output using advanced Kalman filtering.

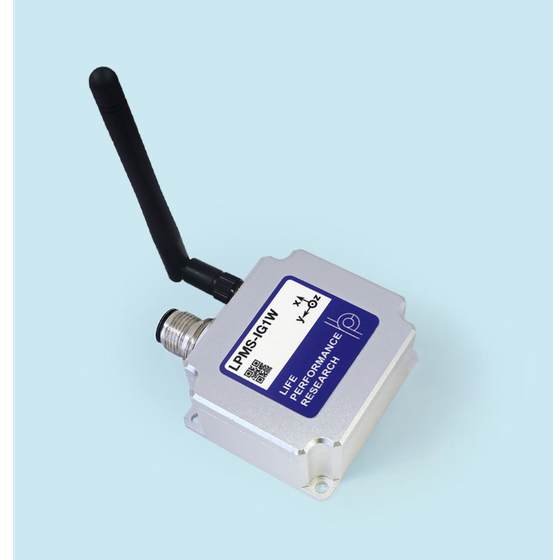

"Achieving high-precision measurement in harsh environments, industrial wireless IMU" The LPMS-IG1W is a high-performance 6-axis inertial measurement unit (IMU) compatible with Bluetooth connections. In addition to measuring 3 axes each of acceleration and gyroscope, it outputs precise attitude angles even in dynamic environments through advanced algorithms. - High robustness that is not limited by the environment (IP67 standard) It features a fully waterproof and dustproof aluminum housing. This allows for measurements in harsh locations such as outdoor construction sites, dust-heavy factories, vessels exposed to splashes, agricultural machinery, and rotating bodies. - High-precision measurement with proprietary algorithms Equipped with the Kalman filter "Core Fusion Engine" based on years of research. It corrects for severe vibrations and magnetic interference in real-time, outputting stable attitude angles with minimized drift at up to 400Hz. - Maximizing development efficiency with complete wireless operation (ROS/ROS2 compatible) It operates completely cable-free with an internal battery and Bluetooth. Ideal for large machinery where wiring is difficult and for human body measurements. In addition to Linux compatibility, it officially supports ROS/ROS2 drivers, facilitating smooth integration into autonomous driving systems.
Inquire About This Product
basic information
【Physical and Communication Specifications】 - Communication Standard: Bluetooth 2.1 + EDR (Classic) - Sampling Rate: Up to 400Hz - Protection Rating: IP67 (Waterproof, Dustproof, Vibration-proof) - Power Supply: Built-in Lithium-ion Battery (USB-C Charging Supported) - Operating Time: Up to approximately 10 hours - Dimensions/Weight: Approximately 40 × 40 × 18 mm / Compact and Lightweight Design 【Sensor Measurement Performance】 - Measurement Items: 3-axis Acceleration, 3-axis Gyro, Orientation Angle (Euler/Quaternions) - Gyro Range: ±125 / ±250 / ±500 / ±1000 / ±2000 dps - Acceleration Range: ±2 / ±4 / ±8 / ±16 g - AD Resolution: 16 bit - Orientation Angle Accuracy: Static Accuracy < 0.5° / Dynamic Accuracy < 2.0° (Representative Values) 【Software and Development Environment】 - Standard Software: LpmsControl (Real-time Waveform Display and Recording) - Supported OS: Windows, Android, Linux - Libraries: C++, C#, Python, ROS, Unity Plugin Provided
Price information
The amount will vary depending on the quantity, so please contact us if you need more than 50 pieces.
Price range
P3
Delivery Time
P3
※Typically, if the items are in stock, delivery can be made approximately 3 to 10 days after the order is confirmed. If a specific type of interface or special customization is required, the delivery time may vary. If you need it urgently or would like to discuss volume discounts, please feel free to contact us through the "Contact Us" section.
Applications/Examples of results
The LPMS-IG1W, due to its robustness and high-precision output, has a wide range of use cases that can be implemented across various industrial fields. 【Main Applications】 - Posture control for construction and agricultural machinery: Slope monitoring for excavators and tractors, measuring arm movements. - Navigation for robots and AGVs (automated guided vehicles): Dead reckoning for autonomous robots, monitoring vibrations and shocks. - Motion analysis in sports and ergonomics: Gait analysis in biomechanics research, performance evaluation of athletes (enabling free movement wirelessly). - IoT applications such as abnormal vibration detection: Structural monitoring: Vibration measurement for bridges and cranes, safety management through tilt detection. - VR/XR simulation: Motion base control for vehicle simulators, posture tracking within the cockpit.
Detailed information
-
LPMS-IG1W dimension-1
-
LPMS-IG1W dimension-2
-
LPMS-IG1W without antenna
-
LPMS-IG1W package
catalog（1）
Download All Catalogs
