Thunderbolt 5 compatible graphics expansion box with 850W power supply that maximally enhances the graphics performance of notebook PCs.

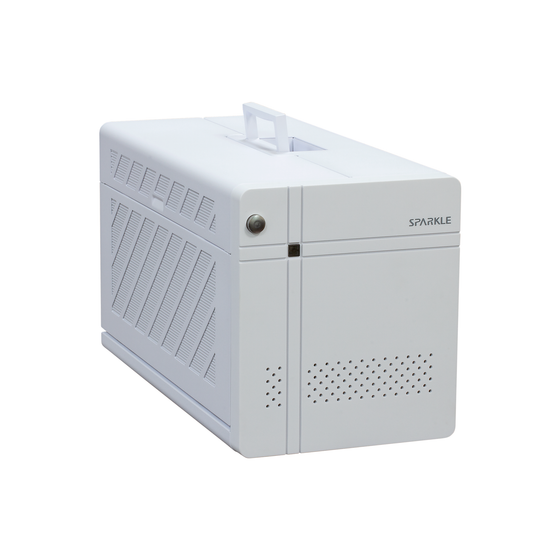

The SPARKLE Studio-G Ultra 850 (hereinafter referred to as this product) is an expansion box that allows you to connect PCI Express 3.0/4.0 x16 compatible graphics cards to your computer via Thunderbolt 5/4 compatible ports. It is equipped with an 850W power supply, making it compatible with high-end graphics cards (GPUs). By connecting this product, which is equipped with a high-end graphics card, you can significantly enhance the graphics performance of your laptop, creating an optimal environment for CAD, gaming, and VR (virtual reality). This product is designed to meet the expectations of users who want to maximize the graphics performance of their laptops by implementing numerous features necessary for high-end graphics cards. *Please note that the internal operation of this product is at 4 lanes (x4). *The power supply to the graphics card is limited to a maximum of 600W.
Inquire About This Product
basic information
◎ Main Specifications Interface: Thunderbolt 5 port (upstream / for PC connection) 1 port Thunderbolt 5 port (downstream / for Thunderbolt/USB device connection) 1 port USB 3.2 Gen 2 Type-C port 1 port USB 3.2 Gen 2 Type-A ports 3 ports RJ-45 1 port PCI Express x16 (x4 operation) 1 slot Power Supply: 850W AC 100–240V, 50Hz/60Hz Dimensions (W x D x H): 200mm x 403mm x 237mm Weight: Main unit: 7.2kg (excluding accessories and PCI Express board) Included Accessories: Thunderbolt 5 cable, user manual, warranty ◎ Operating Environment Computer: Windows PC equipped with a Thunderbolt 5/4 compatible port and support for external graphics cards OS: Windows 11 or later
Price information
Open price
Price range
P2
Delivery Time
P2
※The delivery time will vary depending on the quantity, so please contact us.
Applications/Examples of results
- For expanding the gaming graphics performance of laptops/compact PCs - For building development environments for CAD and VR - As a docking station to enhance the functionality of laptops/compact PCs
Detailed information
-
- Equipped with three 8-pin auxiliary power connectors, capable of supporting a 3.5-slot size graphics card. - Can connect various peripherals with two Thunderbolt ports supporting USB PD power delivery and four USB ports, and features 2.5 gigabit network functionality. - Compatible with Intel's software "Thunderbolt Share."
Line up（1）
| Model number | overview |
|---|---|
| AMU-SP-TBX-850FAW | SPARKLE Studio-G Ultra 850 |
