Improvement of heavy-duty tasks that relied on manual labor: cardboard case unpacking and extraction device.

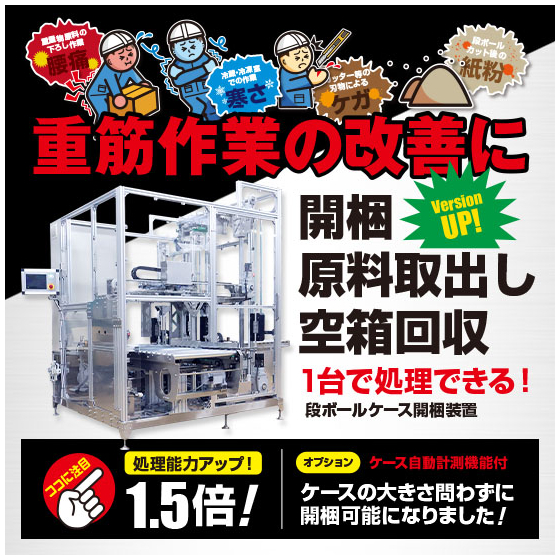

The new version has 1.5 times the processing capacity! A compactly automated cardboard case unpacking and material extraction device for unpacking raw material cardboard cases and extracting materials.
What are the issues with unpacking cardboard cases? In food factories, the handling process of raw materials involves physical strain due to the handling of heavy items and the work environment, raising concerns about injuries. There is an increasing demand for automation from the perspective of labor reduction and improvement. Additionally, cutting the cardboard during unpacking can easily generate paper dust, which can lead to foreign matter contamination. Product Introduction The cardboard case unpacking and extraction device automatically unpacks cardboard cases containing food ingredients without damaging the contents inside and discharges the empty cases. Features - Processing capacity improved by 1.5 times compared to the previous version - Capable of unpacking cases of different sizes even when randomly loaded (optional) - Completes both the unpacking of cardboard cases and the extraction of contents in one device - The device is more compact (L1,910 W1,690 H2,383), allowing for flexible installation considerations - Reduces paper dust generation by cutting the tape instead of the box itself *Scheduled for demonstration at FOOMA JAPAN 2026. *Please check the download button for materials addressing the challenges in the handling process and the product catalog.
Inquire About This Product
Related Videos
basic information
【Exhibition Participation Information】 FOOMA JAPAN 2026 ■Dates: June 2nd to 5th, 2026 ■Venue: Tokyo Big Sight ■Booth Number: West Exhibition Hall 4F, West 3 Hall, W3-09-37 【Other Features】 ■Easy Operation The size of cardboard that can be processed is not limited to just one type. Up to 10 varieties of cardboard sizes can be registered via a touch panel, and by calling up the registered variety, you can continuously process the cardboard simply by feeding it in. ■Unpacking Possible with Random Feeding (Optional) If the option is not included, the following applies: - Up to 10 case sizes can be registered - Call up registered varieties - Unpack cases of the same size continuously ■Compatible with A-type Cardboard The cardboard that can be processed is A-type cardboard. *Please consult us regarding other shapes. 【Benefits of Implementation】 ■Improvement of heavy lifting and unpacking tasks ■Improvement of the working environment ■Reduction of paper dust generation *Please check the download button for materials addressing issues in the handling process and the product catalog.
Price information
We will provide a quote after the specifications are determined.
Price range
P7
Delivery Time
Applications/Examples of results
Type A cardboard *Other details are subject to consultation.
Detailed information
-
[Process Step 1] Inserting cardboard boxes
-
[Work Process 2] Cut the tape on the left side.
-
[Step 3] Cut the tape on the right side.
-
[Process Step 4] Move while cutting the center tape on the bottom surface while gripping the case with the lifting chuck.
-
[Work Process 5] Lift the case and forcibly open the flap.
-
[Process Step 6] Removal of Contents
