Achieves values close to TEM00 and M2 less than 2! A flash lamp model that provides high beam quality.

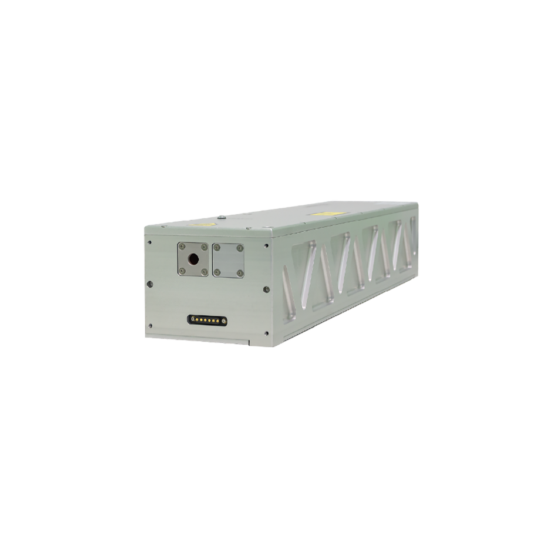

The "Lux Series" is a turnkey Nd:YAG laser that achieves high energy output. It features an industrial-grade stabilized aluminum structure and is equipped with a compact power supply unit that integrates both water cooling and air cooling. The maximum output is 850 mJ @ 10 Hz. The flash lamp and DI cartridge can be user-replaced, and it comes with a reusable and washable particle filter. 【Features】 ■ Flash lamp system (low maintenance) ■ External trigger support via flash lamp and/or Q-switch ■ Remote operation via touch screen ■ Computer control via USB ■ User-installable ■ Electric harmonic generator with temperature control function (optional) *For more details, please refer to the related links or feel free to contact us.
Inquire About This Product
basic information
【Main Specifications】 ＜Lux 4500＞ ■Wavelength: 1064 nm ■Pulse Energy: 450 mJ ■Repetition Frequency: 10 Hz ■Pulse Width: 10 ns ■Beam Diameter: 6.5 mm ■Beam Divergence Angle: < 0.5 mrad ＜Lux 8500＞ ■Wavelength: 1064 nm ■Pulse Energy: 850 mJ ■Repetition Frequency: 10 Hz ■Pulse Width: 10 ns ■Beam Diameter: 9 mm ■Beam Divergence Angle: < 0.5 mrad *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Application Examples】 ■ LiDAR ■ Ti:Sapphire laser/OPO/ Dye laser excitation source ■ Laser-Induced Breakdown Spectroscopy (LIBS) ■ Laser-Induced Damage Threshold (LIDT) evaluation ■ Laser-Induced Fluorescence (LIF) *For more details, please refer to the related links or feel free to contact us.
