With a high resolution of 0.1μA and a completely isolated design, it reliably captures minute changes!

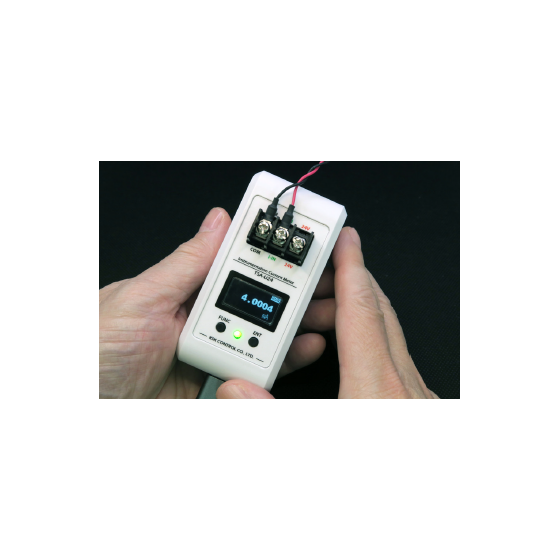

The "TSA-U24" is a high-precision, highly reliable, compact, and lightweight instrumentation current measurement tool that balances ease of use with solid performance. By using a 24-bit ADC, it achieves an effective resolution of over 18 bits. It completely isolates the input and output to block the influence of noise, providing a stable measurement environment. It supports standalone operation with a mobile battery, eliminating the need for a PC, and enables measurement and recording with its simple data logger function, all in one device. It also features flexible installation with one-touch mounting on a DIN rail. 【Features】 ■ Equipped with a 50Hz/60Hz notch filter ■ Measurement input is completely isolated from USB/TTL serial systems ■ Built-in isolated 24V output power supply (maximum 1.5W/62.5mA) ■ Includes a simple data logger function (up to 200 data points) ■ Uses highly reliable components from domestic manufacturers *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Product Specifications (Partial)】 ■ Measurement Resolution: 0.1μA (Equivalent value at measurement input terminal) ■ Input Range: 1 to 23mA ■ Sampling: Approximately 20 samples/second ■ Sensor Power Supply: 24V (Nominal value) / Maximum 65mA ■ PC Connection: USB Virtual COM Port (VCP), Connector Type-C ■ Operation Panel: OLED Display (128 x 64 dots) Push Button Switch x 2 (FUNC/ENT) ■ Operating Temperature Range: -10 to 50℃ (No condensation) ■ Product Size: 93 x 47 x 35mm (Excluding protrusions) ■ Product Weight: 85g *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs![Instrumentation current measurement USB module "TSA-U24" [Scheduled for release after summer 2026]](https://image.mono.ipros.com/public/catalog/image/47736/IPROS13654489310028478043.jpeg?w=120&h=170)
Company information
We primarily focus on contract development of measurement and control systems using computers, as well as embedded microcontroller software, and we provide total support for systems that combine hardware, software, and mechanics. We pride ourselves on offering detailed support that cannot be obtained from large companies, so if you have any projects we can assist with, please do not hesitate to contact us.
