Low-floor vehicle-mounted circulating sustainable blast device

Added to bookmarks
Bookmarks list

Bookmark has been removed
Bookmarks list

You can't add any more bookmarks

By registering as a member, you can increase the number of bookmarks you can save and organize them with labels.
Free membership registration

SP-SBLH

last updated：Sep 30, 2026

関東アスコン

Official site

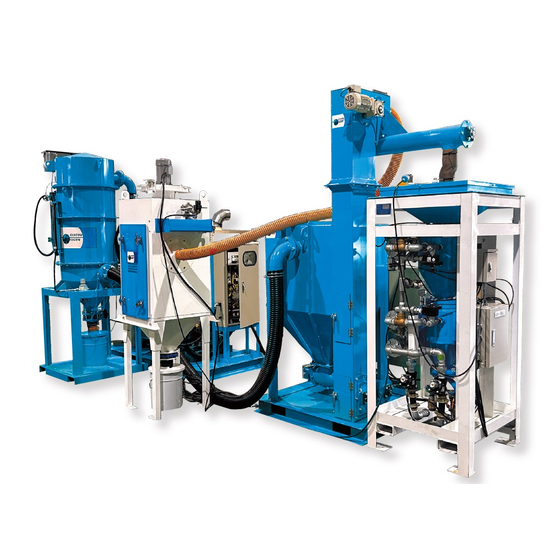

Vehicle-mounted × Continuous blast × Vacuum recovery device × Dust separation = Low-floor circulating sustainable blast

● This is a fully vehicle-mounted unit consisting of a two-nozzle continuous blast machine and a vacuum recovery system. ● It allows for automatic replenishment of abrasive material in conjunction with the continuous blast machine CB85, enabling non-stop spraying without the need to stop for replenishment. ● The vacuum-recovered abrasive material is automatically supplied to the blast machine continuously, allowing for uninterrupted spraying. ● During replenishment, the vacuum-recovered abrasive material is sorted, removing fine dust and enabling the reuse of abrasive material mixed with dust, preventing dust dispersion. ● It features a discharge counter function via a touch panel monitor. ● Abrasive flow adjustment is done using a metering valve. NETIS registration TH-240002-A "Circulating Sustainable Blast Device."

Inquire About This Product

basic information

【Blast Unit】 Model: CB-85-2 Continuous Blast Machine Number of Blast Operators: 1-2 Compatible Nozzles: 6.5Φ - 12.5Φ 【Sorting Recovery Hopper】 Model: SBLH Automatic Transport Sorting Hopper 【Vacuum Recovery Unit】 Model: SP-22/SP-37 Motor: 3-phase 200V 60HZ SP-22 Recovery Distance: 40m SP-37 Recovery Distance: 80m *Additionally, a primary power source for the compressor and generator is required.
