Optimal tool for visualizing safety belt usage status!

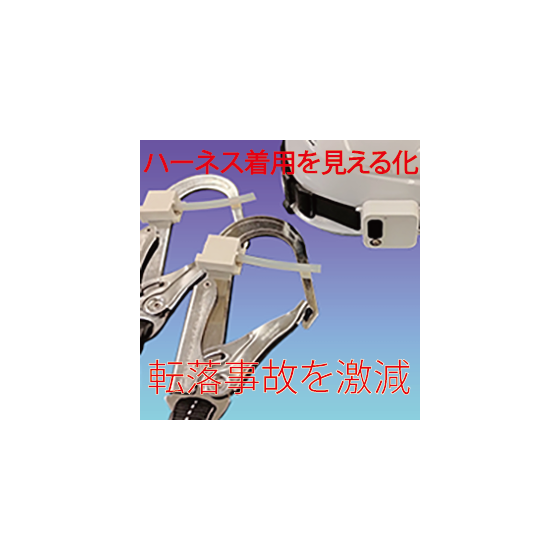

※Visualization of safety belt usage ⇒ Habit formation ⇒ Prevention of fall accidents A wireless switch that can be retrofitted to existing safety belts detects the usage status of the harness! When it detects that the hook is not in use, it alerts the individual with an alarm and simultaneously sends data to the cloud, enabling remote monitoring by administrators. Usage logs are recorded in one-minute intervals. Workers receive audio and visual warnings by attaching a wireless receiver to their helmets. **The areas and ranges where alarms are needed can be set using area sensors! By combining multiple area sensors, it is possible to set up complex alarm locations. The rotary switch of the area sensor allows for the setting of alarm ranges. ***History management via PC or smartphone (optional) is also possible! It is possible to manage the usage status of the harness notify via PC or smartphone. Data can be collected from the history. Safety education can be conducted for workers not using harnesses in hazardous areas.
Inquire About This Product
basic information
【General Specifications】 Frequency Range: 2,400 to 2,483.5 MHz Operating Frequency: 2,402 to 2,480 MHz Modulation Method: GFSK Receiving Sensitivity: -92 dBm Occupied Bandwidth: 4 MHz Transmission Distance: Up to 60 m *The effective range may be shorter due to obstacles and other influences. 【Area Sensor】 Power Supply: Three AA batteries Operating Time: 6 months Dimensions: 66 (W) × 56 (H) × 43 (D) mm Weight: Approximately 72 g *excluding batteries 【Receiver】 Power Supply: Lithium rechargeable battery (Lip 450 mAh) Operating Time: Standby: Approximately 20 hours (when fully charged, at room temperature and humidity) Storage Temperature: -10°C to +60°C Operating Temperature: 0°C to 50°C Dimensions: Power Switch Area: 36 (W) × 60 (H) × 17 (D) mm Setting Signal Area: 117 (W) × 25 (H) × 18 (D) mm *excluding 1M cable Weight: Approximately 115 g *including cable Maximum Connection Count: Unlimited (receiver) Included Accessories: Charging cable (USB-type-A), AC adapter, 4 pieces of Velcro
Price range
Delivery Time
Applications/Examples of results
High-altitude worker Safety belt user
catalog（1）
Download All Catalogs
Company information
Ronk Co., Ltd. is a solution company that supports on-site safety, centered around AI, UWB, advanced laser, and digital radio technologies. Since its establishment, we have established a strong collaborative system between "planning and design by our domestic headquarters" and "manufacturing and quality control by our group company in Shanghai." With this unique know-how, we provide products that implement advanced technology with overwhelming speed and satisfactory cost performance. We contribute to our customers' "creation of a safe and secure environment" with total support that includes not only product planning and manufacturing but also flexible customization and rental services tailored to on-site needs, as well as comprehensive aftercare. If you have any challenges regarding safety measures on-site, please feel free to consult with us first.
