Warning of caution and danger according to the set distance - Upper collision warning system for Unic vehicles.
Unique vehicle upper collision warning system

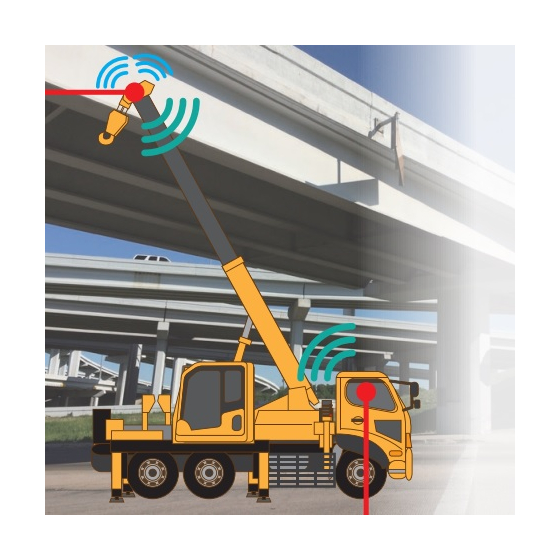

This is a collision prevention alarm system that detects obstacles such as the upper part (tip) of the crane and structures using an "ultrasonic sensor." The "ultrasonic sensor" installed on the upper part (tip) of the aerial work platform is integrated with a solar rechargeable battery, eliminating concerns about battery depletion and making it "unnecessary to remove." Up to four ultrasonic sensors can be added. *The rotating light unit on the driver's side and the ultrasonic sensor on the upper part (tip) of the crane are wirelessly connected, so there is no worry about disconnection during the crane's movement and extension. The driver is warned by the light and buzzer sound of the rotating light unit. **About Ultrasonic Sensor Detection** Maximum detection range: 5 meters It is possible to set caution and danger distances. Depending on the set distance, the driver can be warned with different flashing lights and warning sounds from the patrol light. Safe distance: Patrol light off Caution distance: Blue flashing patrol light + intermittent warning sound Danger distance: Red flashing patrol light + intense warning sound
Inquire About This Product
basic information
Main Specifications 【Solar Power Guard Specifications】 Operating Frequency: 2.4GHz band *Registered with TELEC Antenna Output: Below 1mW Maximum Range: Approximately 50m (line of sight, in an environment without radio interference) Operating Temperature: -10℃ to 50℃ Operating Humidity: 95% or less 【Ultrasonic Sensor Panel】 Antenna: Built-in Power Supply: Lithium Polymer (2600mAh) Power Consumption: Approximately 35mA Continuous Operating Time: Approximately 4 days *If the solar panel does not charge Contents: 1 Ultrasonic Sensor, Solar Panel Dimensions: 75 (W) × 60 (H) × 50 (D) mm Weight: Approximately 171g Water Resistance: Equivalent to IPX5 Notes: Up to 4 units can be installed 【Rotating Light Unit】 Antenna: Built-in Built-in Battery: Lithium Polymer 2000mAh Operating Time: 13 days (8 hours of operation per day) Water Resistance: Not supported Dimensions: 72 (W) × 65 (H) Weight: Approximately 182g
Price information
Please contact us.
Delivery Time
Applications/Examples of results
For aerial work platform use
