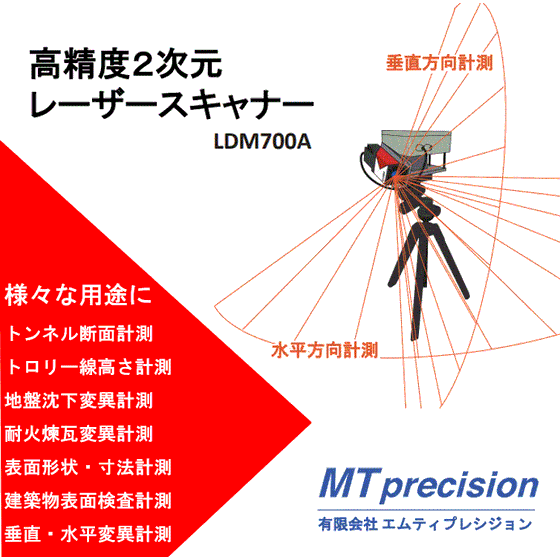

High-precision 2D laser scanner capable of measuring in horizontal/vertical directions. Achieves measurements of displacement, strain, subsidence, and wear that were not possible before. [Demo unit available]
By applying angle control to a high-precision laser distance sensor, it becomes possible to measure and display X/Y coordinates, allowing for measurements with a level of accuracy that was previously insufficient for three-dimensional measurements. Additionally, a resolution of 200,000 points/rev is achieved, enabling automatic measurement of displacements that could not be measured before. What was previously measured manually by humans can now be accurately measured in a short time using a scanner, leading to increased efficiency, reduced manpower, shorter timeframes, and automation of tasks. 【Applications】 - Tunnel cross-section measurement - Replacement of manual measurements in shield tunnels - Measurement of architectural limits - Height/displacement measurement of trolley lines - Displacement measurement of refractory bricks, ground subsidence, and structural deformation - Measurement of the inner diameter of large cylindrical structures 【Features】 ■ High precision (≦±2mm) ■ High measurement resolution (200,000/rev) ■ High measurement speed (250Hz) ■ Compact size (270X200X125mm) *For more details, please download the PDF or contact us. Demo units are also available.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■Measurement Accuracy: ≦±2mm ■Measurement Resolution: 200,000/rev ■Measurement Speed: 250Hz (max) ■Compact and Lightweight: 2.3kg ■Dimensions: 270(L) x 200(W) x 125mm(H) *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Tunnel cross-section measurement ■ Architectural clearance measurement ■ Trolley wire height/displacement measurement ■ Firebrick displacement measurement ■ Ground subsidence displacement measurement ■ Structural strain displacement measurement, etc. *For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Since its establishment, we have been involved in the development of our own products, starting from gathering ideas, and have repeated the processes of mechanical design, processing, circuit design, and embedded programming every year. Currently, we are engaged in both OEM production and the sale of our own products, and we intend to continue developing measuring instruments that can further meet our customers' needs. We are also the general agent for Dimetix in Switzerland and are focusing on the sales of red laser distance meters. This product has been adopted for measuring the height of the Tokyo Skytree, the tallest structure in the world. We believe there are still many applications for this technology, and we would like to explore each one. In recent years, we have also been focusing on measuring instruments for railway-related construction limits. We have started to receive inquiries from East Japan Railway Company regarding the development of measuring instruments for construction limits in various fields such as construction, civil engineering, signaling, and power. Additionally, we received an Encouragement Award at the 28th Ota City Small and Medium Enterprises New Products and New Technologies Competition for our graphic-integrated construction limit measuring instrument.
