Freely operate the dimming chip from the outside.

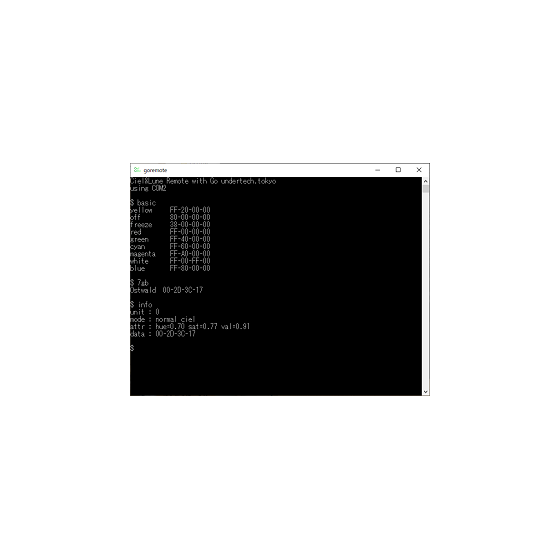

You can send commands to the dimming chip via serial communication to turn the colors on and off. Multiple chips can be connected to a single controller in a daisy chain for individual operation. The color format adopts the "Ostwald color system," which makes it easy to imagine colors: 0 - 23: Hue number (0:red, 10:green, 16:blue) a - z: Saturation (a:max, z:min) a - z: Brightness (a:max, z:min) *The actual transmitted data is much more precise and expanded from 0 to 255. <Features> 1. By transferring and storing color data and sequence data within the chip, it is possible to automatically program color changes. 2. As an energy-saving measure, the transmitted data from the power meter embedded in the chip is examined to accurately measure the energy-saving effect of the lighting. 3. For the first time in lighting, Moon-Spencer's "Aesthetic Measure" can be calculated, allowing professional designers to explore color harmony with multiple hues. 4. Data for external devices linked to the sequence can be transmitted.
Inquire About This Product
basic information
Communication format: 19200bps 8bit
Price range
Delivery Time
Applications/Examples of results
Acrylic Edge
Company information
Under Technology is a company researching full-color dimming technology for RGB-LEDs. We develop and sell dimming chips using our patented "diffusion control" technology.A key feature of our diffusion control is HSV dimming, which allows us to change saturation and brightness while maintaining hue.Furthermore, our constant single-color illumination absorbs the brightness differences between each color, stably illuminating delicate colors.Combined with our optimized complete off function, this allows for reduced power supply design requirements and the creation of an energy-saving environment compared to conventional methods. Please feel free to contact us with any inquiries.
