Clip camera that can be set on the outside of the welding face shield.
■ This is a compact and lightweight camera with minimal halation that can be set on the outside of a welding helmet glass. ■ It employs a wide dynamic range CMOS imaging sensor (120dB) to reduce halation caused by intense arc light and other factors. ■ It allows for capturing images from the welder's perspective, making it useful for skill transfer and monitoring welding quality. ■ With an optional microphone and video recorder, simultaneous recording of welding sounds along with video is possible. ■ Camera settings can be adjusted via the OSD (on-screen display) using the buttons on the back of the camera. ■ It is a clip camera that can be set on the outside of the welding helmet glass. ■ It can also be used by attaching it with a clip in locations other than the welding helmet.
Inquire About This Product
basic information
【Imaging Sensor】1/3 inch CMOS sensor 【Effective Pixel Count】756 (horizontal) × 504 (vertical) 【Video Output Signal】NTSC output CVBS: 1Vp-p 75Ω, interlaced (unbalanced) 【Minimum Illumination of Subject】0.05Lux/F1.2 20IRE 【Dynamic Range】120dB (maximum) 【S/N Ratio】50dB 【Sensitivity】11.9 [V/Lux.sec] 【Resolution】Horizontal: more than 520 lines 【Operating Temperature Range】-10℃ to +45℃ 【Power Supply】+12V (with AC adapter) 【Current Consumption】80mA [12V]
Price range
Delivery Time
Applications/Examples of results
Welding quality monitor, skill inheritance, etc.
Detailed information
-

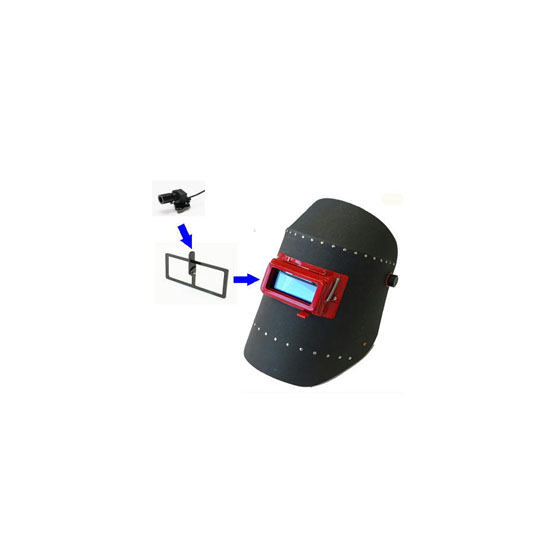

Before inserting the transparent glass for the welding mask, set up the fixture for attaching the welding mask.
Company information
WeldVision visualizes and captures welding conditions, contributing to the improvement of welding quality through the development and provision of its products. Additionally, the compact camera can be customized to meet various requests.
