High-performance bearing that prevents seizure, galling, and eccentricity, and improves the durability of seals and packing.
This is a high-performance bearing uniquely developed using the technology accumulated as a manufacturer of thermosetting plastic bearings. We respond to diverse needs and propose the optimal materials according to usage conditions such as hydraulic, pneumatic, and water pressure cylinders. We can accommodate dimensions not available in other products and support small quantities of various types. Please feel free to contact us. Compression resistance, wear resistance, self-lubrication, etc.
Inquire About This Product
basic information
■ Selvic U201 (Cotton Fabric, Phenolic Resin) *Commonly known as: Fabric-embedded Phenolic, Fabric Bake 【Features】 - A product formed by impregnating cotton fabric with phenolic resin. *Commonly known as: Fabric-embedded Phenolic, Fabric Bake 【Point】 - Excellent compressive strength - Excellent durability - Cost advantages - Available in a wide range of diameters and widths ■ Selvic U272 (Synthetic Fiber, Unsaturated Polyester Resin) 【Features】 - A composite material made from synthetic fiber substrate and unsaturated polyester resin. 【Point】 - Good sliding properties in oil environments - High wear resistance - Excellent compressive strength and high impact resistance - High flexibility, easy to install in piston grooves and rod grooves ■ Selvic U282 (Synthetic Fiber, Phenolic Resin) 【Features】 - A product formed by impregnating synthetic fiber substrate with phenolic resin. 【Point】 - Excellent dimensional stability - High impact resistance - Combined with fixed lubricants, can be used as an oil-free bearing ■ Selvic U266 (Tetrafluoroethylene Resin) 【Features】 - A product formed using tetrafluoroethylene resin as the base material. 【Point】 - Self-lubricating - Heat resistance - Water resistance, chemical resistance Other materials available
Price range
Delivery Time
Applications/Examples of results
Construction machinery, presses, tools, etc. Hydraulic, pneumatic, and water pressure cylinders, etc.
Detailed information
-

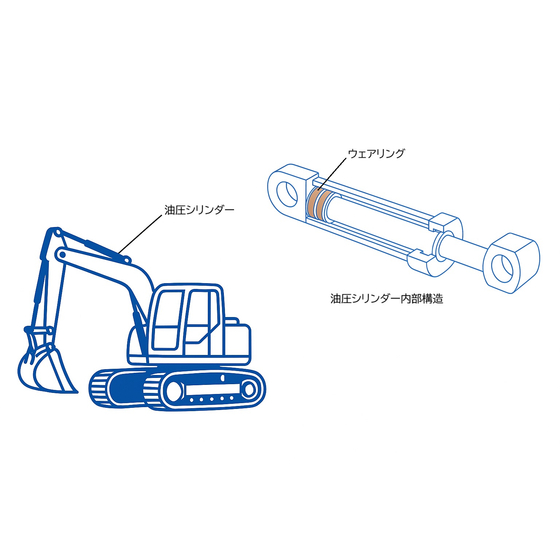

Internal structure of a hydraulic cylinder
-
Hydraulic cylinder for construction machinery
catalog（2）
Download All Catalogs
Company information
Our company is a comprehensive manufacturer that utilizes the technology cultivated in the field of thermosetting resins to carry out integrated production from material development to molding and processing. We are confident that our mission is to gather the collective strength of research and development, production, and service to respond to the new era of plastics, and we are committed to further honing our skills to contribute to the advancement of society.
