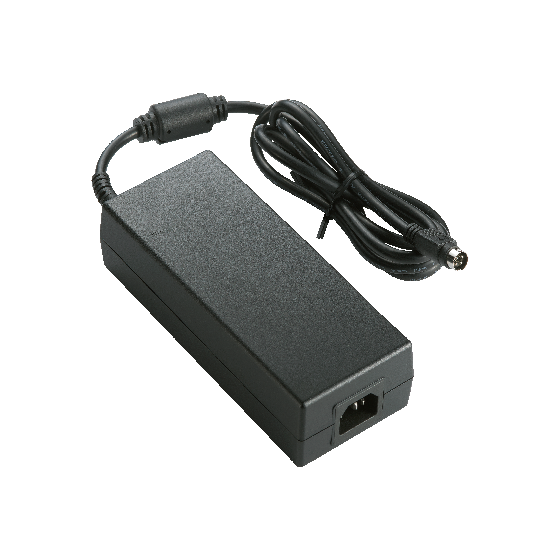

200W AC Adapter Medical Standard Compliant Version 3.2_EMC Version 4.1
AC adapter for medical devices, already compliant with medical standards as a standalone AC adapter, providing advantages during pharmaceutical law application, PSE certified product, selectable terminals, and compact design.
200W | Medical grade product | High reliability AC adapter | Multiple output voltage models available | AC adapter for medical devices manufactured by Adapter Technology Co.
This is a high-reliability, high-efficiency PSE-compliant AC-DC adapter suitable for those looking for a 200W output. It supports a wide range of voltages including DC12VA, 19V, 24VA, 25V, 48V, and 56V. It is often considered for various applications such as medical devices, medical equipment, and healthcare-related products. Manufactured by Taiwan's Adapter Technology Co., it is a high-quality power supply with a rich track record of adoption by many major domestic companies. The secondary side DC plug can be freely selected, and it also supports the installation of supplied connectors. The power cable (AC cord) can be chosen to be included or not. We can flexibly accommodate custom packaging specifications and label content, as well as additional applications for overseas safety standards. Various protection circuits such as over-voltage protection (OVP) and short-circuit protection (SCP) are standard features. It ensures long-term stable supply and high reliability. We also support mass production projects, custom orders, and factory audits. Comes with a reassuring long-term warranty of 2 years. Search keywords: AC adapter, medical, output, 200W, 12V, 24V, PSE mark, high reliability, Adapter Technology Co., manufacturing. *Please feel free to consult us for more details. *We will provide careful support from the selection of AC adapters.
Inquire About This Product
basic information
■ AC Adapter: Desktop Type ■ Input Voltage: 100–240VAC (Worldwide Input) ■ Frequency: 50–60Hz ■ Operating Temperature: -20–+40℃ ■ Operating Humidity: 20–80% ■ Storage Temperature: -20–+80℃ ■ Storage Humidity: 10–90% (No Water Droplets) ■ MTBF: 300,000 hours (Calculated Value) In the development of medical devices, selecting a highly reliable switching AC adapter is an important factor that influences product quality. This unit is a 200W AC adapter designed for medical devices and rehabilitation equipment, boasting a rich shipping record to manufacturers worldwide. It has obtained the Electrical Appliance and Material Safety Law (PSE) certification, allowing for safe consideration in the domestic market. It has been adopted by many major manufacturers, and we encourage consideration for devices requiring long-term stable supply and high reliability. The output plug is selectable, and we can also accommodate specifications with Japanese aluminum electrolytic capacitors. This "safe and secure" AC adapter has received high praise for a wide range of applications, including medical devices, medical healthcare, and rehabilitation equipment. *For more details, please feel free to contact us. *We provide careful support from the selection of AC adapters.
Price range
Delivery Time
Applications/Examples of results
【Applications】 General: Communication devices, Wi-Fi equipment, PC peripherals, refrigerators, water purifiers, leisure devices, sports equipment, seasonal decorations, etc. Industrial: Store ordering terminals, commercial printers, security cameras, broadcasting equipment, network devices, advertising signs, etc. *For more details, please feel free to contact us. We also accommodate connections for specified plugs, changes in wire lengths, center negative (reverse polarity) configurations, etc. (Large capacity connectors, high mating connectors, EIAJ plugs, Canon connectors, XLR, Hirose, SMK, DIN, mis-mating prevention plugs, pull-out prevention locking types, screw types, and more) For labeling with your company logo, mounting specified components, reliability test data, short delivery times, small lot sizes, custom orders, new developments, large-scale production, and other inquiries related to AC adapters, please feel free to consult us.
Line up（6）
| Model number | overview |
|---|---|
| ATM200A4-□120 | DC12.0V 16.00A 192W |
| ATM200A4-□150 | DC15.0V 13.33A 200W |
| ATM200A4-□190 | DC19.0V 10.50A 200W |
| ATM200A4-□240 | DC24.0V 8.30A 200W |
| ATM200A4-□250 | DC25.0V 8.00A 200W |
| ATM200A4-□480 | DC48.0V 4.17A 200W |
