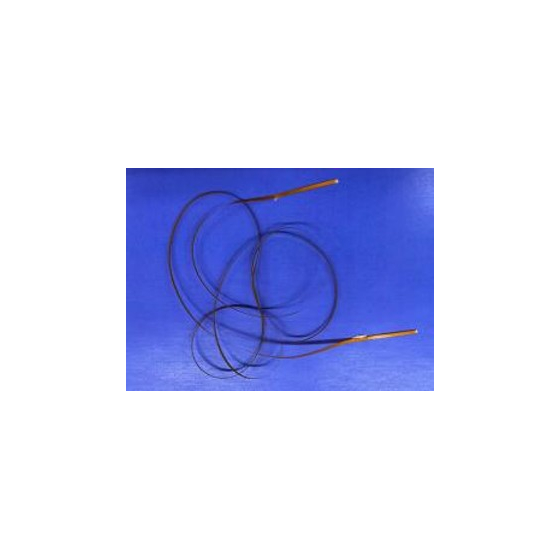

Low Resistance Long Length FPC for Catheters (for Medical Devices)
Low resistance, ultra-thin and ultra-fine, fine wiring, and long length FPC. Ideal for catheter applications.
Flexible handling up to 3 meters long, easy to insert even multiple thin catheters. Excellent cost performance and noise reduction measures are also achieved.
A catheter is a thin tube used in medical applications that is inserted into the body. In next-generation catheters, there has been a challenge with an increase in signal lines, which cannot be accommodated within traditional ultra-fine wire cables. Our company has addressed this challenge by developing a low-resistance long-length FPC for catheters. By using FPC, it becomes possible to fit many signal lines within the catheter. This product, with its long length, fine wiring, and ultra-thin characteristics, is ideal for use in medical devices, including catheters. ■Features - Long-length × fine wiring × ultra-thin FPC - Single-sided / double-sided (without TH) - L = 2500mm, L/S = 50µm, FPC width 0.6mm (subject to consultation) - No adhesive layer, thin, and very flexible - Low resistance due to the selection of Cu 35mm, good etching precision even in long lengths, and high signal quality - Capable of mounting components such as sensors
Inquire About This Product
basic information
■Specifications - FPC Length: Up to 3m - FPC Thickness: 80μm - FPC Width: 0.6mm or more - Wiring: We will accommodate customer needs - Layer Structure: Single-sided, double-sided (consultation required for specifications)
Price information
Consultation is required for each specification. Please feel free to contact us.
Delivery Time
※[Reference Information] About 1 month after the specification fix.
Applications/Examples of results
Can be used with ultra-thin items such as catheters and guidewires.
