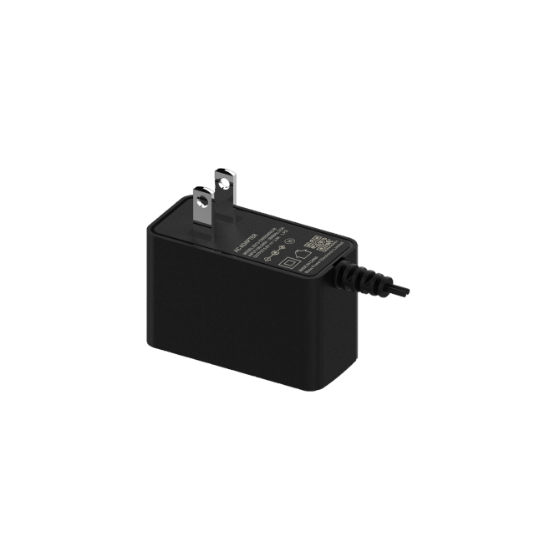

Maspower_E013-1D_12W_Power Supply for Medical Devices
Power supply for medical devices (compliant with medical safety standards such as IEC 60601-1)
Inquire About This Product
basic information
- Power supply for medical devices (compliant with medical safety standards such as IEC 60601-1) - Input: 100–240Vac (wide range) / Input range: 90–264Vac - Output: 5.0Vdc / 2.4A (maximum 12W) - Low standby consumption: 0.075W Max. - Protection: OCP (over current) / SCP (short circuit) / OPP (overload) / OVP (over voltage) / OTP (over temperature) - Surge withstand: differential 1kV / common mode 2kV, ESD: contact 4kV / air 8kV - Operating temperature: 0–45℃, operating altitude: 0–5000m
Price range
Delivery Time
Applications/Examples of results
・Power supply for medical use (biomedical and medical devices) ・Testing and measuring equipment, medical peripheral devices, etc.
