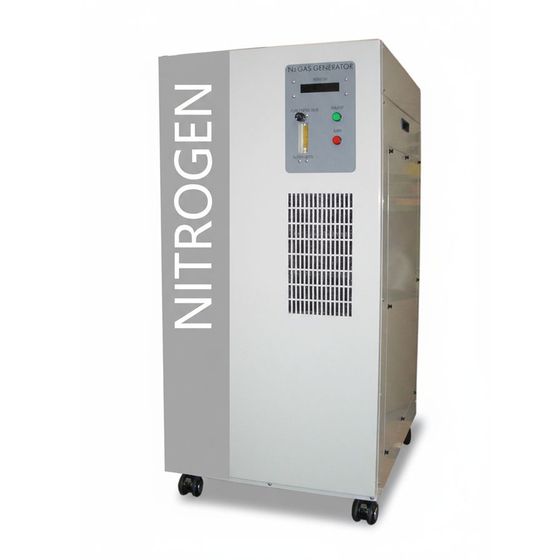

Mini nitrogen gas generator that can be used with single-phase AC.
□ Microcontroller control with LCD display Displays the purity of nitrogen gas and accumulated operating time during operation. If there is a purity anomaly or a problem with the compressor, it will be displayed on the indicator. □ Low noise, high lifespan design Equipped with proven low-noise, high-lifespan oil-free compressors (1 to 4 units), it can be used in quiet indoor environments due to its highly soundproof structure. It is compact and lightweight, with a built-in water drain vaporization device, making it suitable for various installation locations. □ Outside the application range of Category II pressure vessels Since it is outside the application range of pressure vessels, it can be used overseas by incorporating a transformer (optional).
Inquire About This Product
basic information
Nitrogen concentration: Series available from 99% to 99.999% Generation rate: Series available from 2.7 to 33.0 Nm3/h Nitrogen pressure: Series available up to 0.35-0.45Mpa; oxygen concentration sensor included Type 1 dimensions: 400 (W) × 460 (D) × 850 (H) Type 2 dimensions: 480 (W) × 620 (D) × 950 (H) Type 3 dimensions: 600 (W) × 650 (D) × 950 (H) Nitrogen gas outlet: Rc 1/4 Weight: 58 to 140 kg
Price range
Delivery Time
Applications/Examples of results
- Use of inert gases - When stable supply is needed for long-duration experiments - Utilization of nitrogen by mounting on equipment - When cylinder delivery is not possible - Heat treatment atmosphere gas and testing
catalog（1）
Download All Catalogs
Company information
Our company is engaged in various industrial equipment, focusing on the development and manufacturing of industrial machinery (control devices), gas generation systems, security systems, and more. We respond to customer inquiries by designing and developing, creating electrical diagrams, processing drawings, and sequence software.
