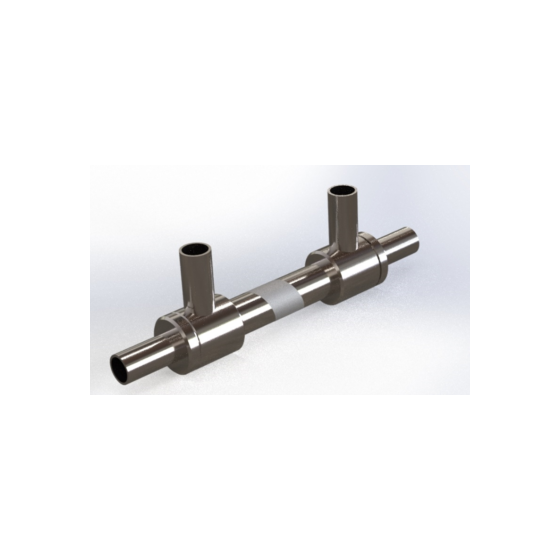

Entry model of heat exchanger using SCF tube has arrived【High efficiency × High durability × Compact】
"Do you have any of these concerns?" - Limited space within the equipment - Want to efficiently cool or heat high-temperature fluids - Large heat exchangers are not cost-effective or suitable for installation → The compact and high-efficiency heat exchanger "Heatle" can solve these issues! 【Features】 - Shell and tube type heat exchanger - Achieves high-efficiency heat exchange with a unique SCF tube structure - Contributes to space-saving in equipment with a compact design - Compatible with both gas and liquid - Made of stainless steel for excellent corrosion resistance and durability - Custom options available alongside standard product lineup << For more details, please download the catalog and check it out. >> Contact form: https://rgl.co.jp/contact/
Inquire About This Product
basic information
【Specifications】 - Model: HR0101 - Size: W160 × D25 × H50 mm (Heat transfer tube length is 100 mm) - Connection diameter: φ12.7 mm - Working fluid: Gas / Liquid - Maximum operating pressure: 1.0 MPa - Operating temperature: up to 300℃ - Flow rate range: Gas: up to 50 NL/min Liquid: up to 3 L/min - Material: SUS304 / SUS304L - Heat transfer tube: SCF6 φ12 *Please refer to the catalog for detailed specifications.
Price information
Please feel free to contact us. Contact form: https://rgl.co.jp/contact/
Delivery Time
Applications/Examples of results
Homepage > Examples of Applications for Heat Exchangers 〇 Semiconductor Industry ・Vertical Diffusion Furnace ・CVD Equipment 〇 Chemical and Industrial ・High-temperature gas cooling for residential fuel cell systems ・Temperature control of process fluids ・Refrigerators ・Cryogenic cooling ・Waste heat treatment for factory equipment (e.g., 60℃→20℃) ・Diesel engine generators ・Boilers
Detailed information
-
Strengths of SCF tubes: Rapid cooling of high-temperature gas is possible.
-
Strengths of SCF Tubes: High Durability
-
Heatle's unique strength: an unparalleled compact design.
