Automatic ultrasonic testing device for inspecting welds between aluminum and titanium flat plates!

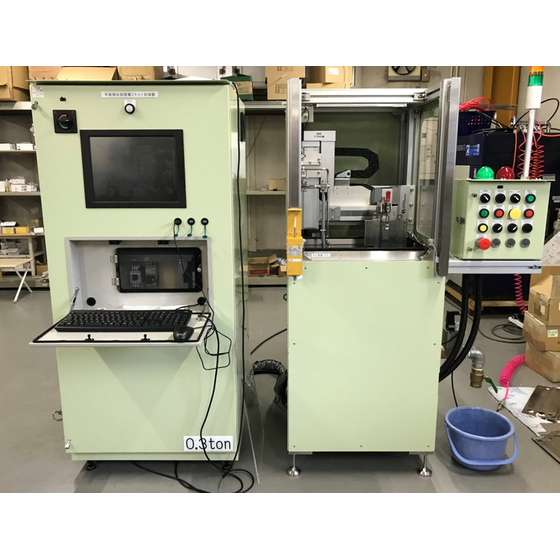

The "Plate Joint Inspection Scanner" is an automatic ultrasonic testing device specifically designed for inspecting the welds of aluminum and titanium plates through full immersion testing, with real-time data recording and image processing. It consists of an ultrasonic testing section and a mechanical section. The ultrasonic testing section is responsible for setting inspection conditions and saving and reading inspection results. The mechanical section is composed of drive axes for the X-axis and Z-axis, both of which can be set for automatic scanning. 【Inspection】 ■ Processes ultrasonic signals through scanning based on positional information ■ Displays the location and shape of defects on the monitor by unfolding into plan and cross-sectional views ■ Inspection result images can be processed for color display according to evaluation methods ■ Monitor display images can also be copied to hard media and printed *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
【Main Equipment Specifications (Partial)】 ■ Equipment Size: Width 700 × Height 1550 × Depth 600 mm (Mechanical Part) ■ Mechanical Part: Controller, Light Curtain Cycle Time: 2 minutes 30 seconds per sheet (Measurement pitch 0.1 mm, Beam diameter Φ2, X・Y axis 100 mm/s, Measurement range W80 × H11.4) ■ Measurement Section ・Number of measurable channels: 2CH ・Sampling Rate: 100 MHz, 10 bit 1CH ・Sensitivity: 0 to 80 dB ・Pulse repetition frequency: Up to 10 KHz *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
