Automatic ultrasonic testing device for inspecting welds of aluminum and titanium flat plates!

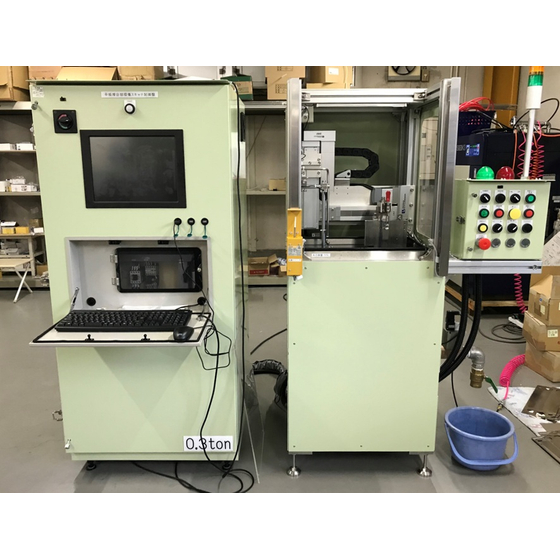

The "Plate Joint Inspection Scanner" is an automatic ultrasonic testing device specifically designed for inspecting the welds of aluminum and titanium plates through full immersion testing, with real-time data recording and image processing. It consists of an ultrasonic testing section and a mechanical section. The ultrasonic testing section allows for the setting of inspection conditions and the saving and reading of inspection results. The mechanical section is composed of drive axes for the X-axis and Z-axis, both of which can be set for automatic scanning. [Inspection] - Based on positional information, ultrasonic signals from the scan are processed into images. - The results are displayed on the monitor, showing the location and shape of defects in both plan and cross-sectional views. - The inspection result images can be color-coded according to the evaluation method. - The monitor display images can also be copied to hard media and printed. *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Main Equipment Specifications (Partial)】 ■ Equipment Size: Width 700 × Height 1550 × Depth 600 mm (Mechanism Section) ■ Mechanism Section: Controller, Light Curtain Cycle Time: 2 minutes 30 seconds per sheet (Measurement pitch 0.1 mm, Beam diameter Φ2, X・Y axis 100 mm/s, Measurement range W80 × H11.4) ■ Measurement Section ・Number of measurable channels: 2CH ・Sampling rate: 100 MHz, 10bit 1CH ・Sensitivity: 0 to 80 dB ・Pulse repetition frequency: Up to 10 KHz *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
