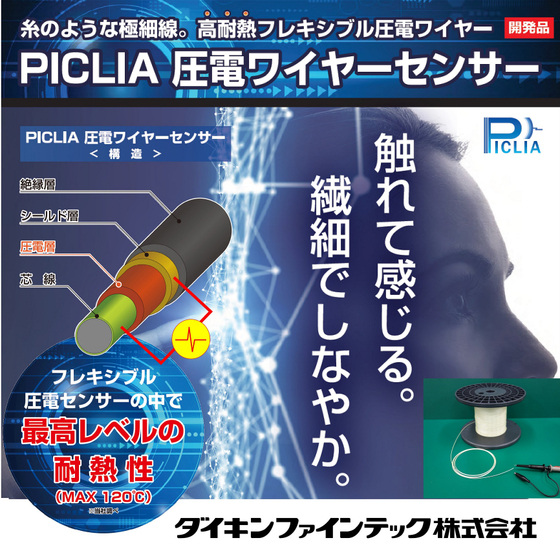

Invisible changes, to certain peace of mind. PICLIA wire sensor.
The PICLIA wire sensor is a highly sensitive device that detects minute vibrations and changes occurring in structures, continuously monitoring a wide range of conditions to capture signs of abnormalities at an early stage. It is designed with ease of installation and maintainability in mind, reducing operational burdens while being widely applicable for monitoring various structures such as bridges, tunnels, and buildings. It is a reliable monitoring solution that supports the safety and longevity of structures. 【Usage Scenarios】 - Vibration and displacement monitoring of bridges and elevated bridges - Understanding changes in the ground and body of tunnels and underground structures - Monitoring signs of deterioration in buildings and equipment foundations - Safety and behavior confirmation during construction and repair 【Benefits of Implementation】 - Real-time understanding of the condition of structures leads to early detection of abnormalities - Supports optimization of maintenance plans through improved accuracy of inspections and surveys - Contributes to reduction of manpower and costs through increased efficiency of monitoring tasks - Achieves longer lifespan and improved safety of structures through vigilant monitoring that does not overlook changes.
Inquire About This Product
Related Videos
basic information
【Features】 ♦ Wire-shaped piezoelectric sensor ♦ Wide bandwidth (0.1 to several MHz), capable of observing vibrations over a wide area rather than just points ⇒ Collects low to high frequencies collectively for overall preventive maintenance of equipment ♦ Acquires pressure, vibration, shock, and vital signals with a thin wire ♦ Responds to physical deformation, can be mounted to conform to shapes such as curved surfaces and gloves ⇒ Application examples: industrial equipment, medical, wearable, sports, etc. ♦ High sensitivity acquisition of weak signals like heartbeat and respiration (Min. 0.003N) ♦ No power supply required ⇒ Contributes to low power consumption systems ♦ Same structure as coaxial cables, capable of sensing with low noise ♦ Usable in harsh environments such as water, oil, solvents, and high temperatures ♦ Environmentally compatible from -40 to 120℃, with 10 million cycles of bend resistance ⇒ High durability ♦ Integrated molding with resin (up to 120℃), including urethane, TPU, silicone, epoxy, etc.
Price range
Delivery Time
※Please contact us.
Applications/Examples of results
【Application Examples】 ■ Medical and Care (Monitoring): Behavior and health monitoring using chairs/beds/foot mats (disinfection and sterilization compatible) ■ Industrial Equipment (Measurement, Predictive Maintenance): Vibration monitoring of equipment, molds, and parts ⇒ Rotation, vibration, leak (Operating in environments from -40℃ to 120℃, 0.1Hz to ultrasonic range) ■ Resin Parts (Predictive Maintenance): Vibration, rotation, leak, and accumulation monitoring in parts where magnet attachment is difficult, such as bearings, valves, and resin piping Integrated molding (EVA, urethane, TPU, silicone, epoxy, etc.) ■ Wearable (Measurement): Vibration monitoring in glove form (quality control, sports) ■ Robotics (Tactile): Robot motion (motion errors, arm vibration), integrated cables ■ Automotive (Autonomous Driving): Detection of health abnormalities (vital signs and center of gravity shifts), bumper collision detection ■ Security (Crime Prevention): Intrusion detection using wired networks, pest control ■ Others (Structural Deterioration Detection): Deterioration detection of pillars and beams in important cultural properties *Installed by wrapping without drilling holes *For more details, please refer to the catalog or feel free to contact us.
