It is optimized for data collection using dummy heads and binaural measurement systems.

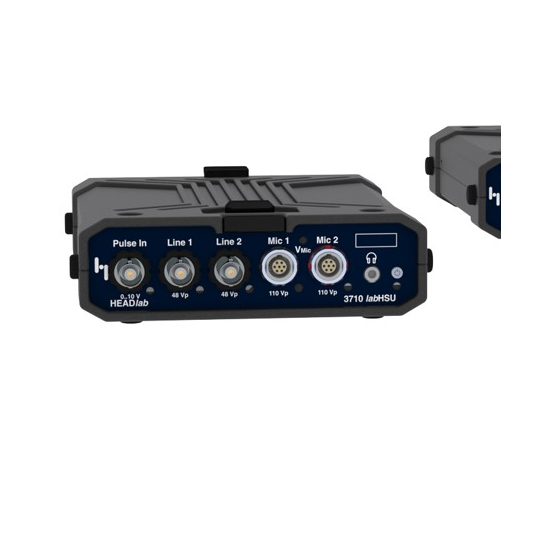

The labHSU is a flexible binaural front-end device from the HEADlab family, equipped with the HEADlink 2.0 transmission protocol. It is optimized for data collection using dummy heads and binaural measurement systems. Additionally, the labHSU offers connection options for traditional line inputs, IEPE, ICP, pulse sensors, condenser microphones, and headphones. One of the outstanding features of the labHSU is its standalone mode, which allows binaural measurements to be conducted using only a smartphone or tablet. Furthermore, the labHSU is equipped with dual ADC technology, a very wide dynamic range, ease of use, direct playback, and many other features, making it a versatile measurement system capable of handling a wide range of applications.
Inquire About This Product
basic information
HEADlink 2.0 Transmission Protocol Maximum Sampling Rate: 204.8 kHz Three Operating Modes › Front End Mode (connected to PC) › Module Mode (connected to HEADlab controller, not PC) › Standalone Mode (Tool Pack Stand-Alone Recording (code 3710-01) required) Connection Options › Dummy Head HSU III.2, HSU III.3, HMS V, HMS IV (currently not for sale) › BHM III.3 Binaural Head Microphone › LINE, IEPE, ICP Sensors (TEDS), Condenser Microphones, and RPM Sensors Recording Equalization of labHSU Faithful reproduction of equalized sound through our headphones Wide dynamic range input with dual ADC technology Flexible power supply Electrical isolation from other modules within the HEADlab system and from the PC interface for each input terminal
Price range
Delivery Time
Applications/Examples of results
Data collection using HEAD acoustics' dummy head and other binaural measurement systems, with a maximum sampling rate of 204.8 kHz.
catalog（1）
Download All Catalogs
Company information
HEAD acoustics Japan Co., Ltd. has been active as a leading company in the fields of dummy head-related recording and playback systems, acoustic analysis based on human auditory characteristics, and communication measurement technology for over 25 years. HEAD acoustics has consistently been a pioneer in developing innovative technologies such as dummy head-related binaural technology, acoustic analysis related to human hearing, interactive sound simulation systems, and transmission path analysis. HEAD acoustics will continue to focus on research and development through collaboration with universities and other research institutions and participation in international research projects.
