Fixing without damaging the shaft! COC company's stainless steel bearing unit.

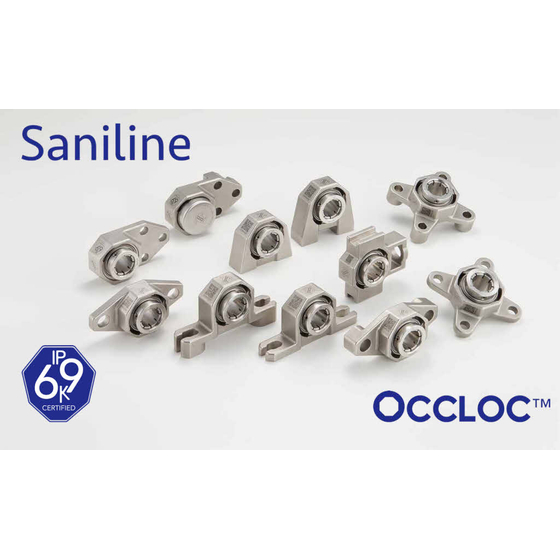

COC Waterproof Stainless Steel Bearing Unit "Saniline"
Eliminate the "not coming out..." during exchanges! Waterproof stainless steel bearing unit 'Suniline' that securely fixes without damaging the shaft.
"Saniline" is a waterproof stainless steel bearing unit equipped with a unique concentric shaft locking system called "O'clock," which securely fixes the shaft without damaging it. In typical bearing units, the "set screw fixation" method often causes the screw to directly contact the shaft, leading to scratches (dents) on the shaft's surface. These scratches frequently result in the problem of "the bearing becoming stuck on the shaft during maintenance." With the "O'clock mechanism," the shaft is concentrically fixed with uniform force that envelops it, leaving the shaft undamaged. During bearing replacement, it can be smoothly attached and detached without any snagging, facilitating maintenance. 【Other Features】 ■ IP69K waterproof and dustproof performance ■ Maintenance-free with no lubrication required ■ Designed for enhanced hygiene, allowing for cleaning even on the backside ■ Supports two-dimensional code engraving ■ Detachable stainless steel safety cover *Please check the comprehensive product catalog that summarizes multiple lineups via the catalog download button.
Inquire About This Product
basic information
- Dimensions are 100% compatible with JIS pillow blocks. - Shaft diameter settings: Φ12, Φ15, Φ17, Φ20, Φ25, Φ30, Φ35, Φ40 mm. - All stainless steel specification. - Housing material: SUS316. - Types of bearing boxes: pillow type, narrow width pillow type, diamond flange type, square flange type, deformed flange type, take-up type. - A stand-off housing with a clearance of 12 mm is provided for each type.
Price range
Delivery Time
※In-stock domestically
Applications/Examples of results
**Main Uses** - Food manufacturing lines: Conveying lines for prepared foods, processed foods, frozen foods, and confectionery equipment. - Food packaging and packing lines: Processes with high cleaning frequency, such as packaging machines, filling machines, and conveyor equipment. - Beverage bottling equipment: Environments where water and detergents are present, such as bottling lines and conveying equipment. - Pharmaceutical lines: Manufacturing equipment and conveying processes that require hygiene and cleanliness. **Benefits of Implementation** - Waterproof and dustproof, extending the lifespan of bearings and reducing equipment downtime risks. - Prevents water ingress even with high-pressure cleaning, preventing bearing deterioration (rust). - Reduces maintenance labor through oil-free operation. - Prevents grease leakage, addressing foreign matter contamination. - Improves hygiene management levels due to enhanced cleanability. - Increases efficiency of replacement work by preventing shaft damage. - Standard models support temperatures from -20°C to 100°C, while low-temperature models support -45°C to 125°C, making them suitable for a wide range of environments.
Detailed information
-
SUS316 stainless steel bearing housing 4-lip seal (outer: fluororubber) 8-slit SUS440C inner ring NSF H1 certified, food-grade grease pre-filled Drainage design
