Hygienic design to prevent bacterial growth! Waterproof stainless steel bearing unit.

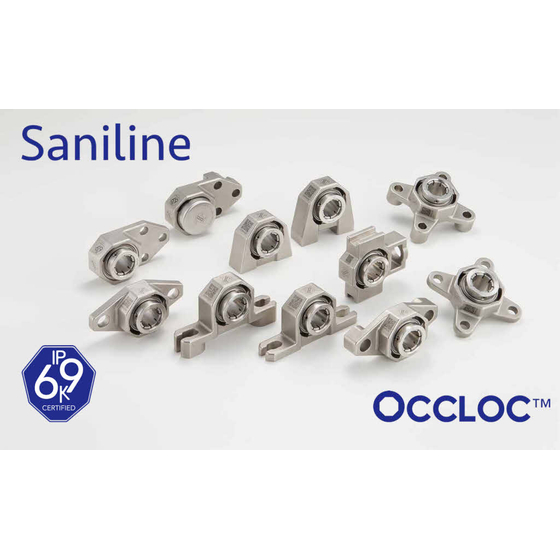

COC Waterproof Stainless Steel Bearing Unit "Saniline"
The gap (12mm) with the mounting surface prevents dirt accumulation! The waterproof stainless steel bearing unit "Saniline" allows for thorough cleaning even on the backside.
"Saniline" is a waterproof stainless steel bearing unit that employs a "standoff housing" with a clearance of 12mm from the mounting surface, achieving the highest level of sanitation. Conventional bearing units have the mounting surface and housing in close contact, making it easy for cleaning water and food residues to remain in that gap, which becomes an ideal breeding ground for bacteria and mold. This product features a structure that creates a 12mm gap, allowing high-pressure water and cleaning solutions to reach the previously inaccessible "back side of the bearing," enabling complete rinsing. By eliminating dirt and water retention and minimizing sources of bacterial growth, it significantly contributes to overwhelming hygiene management in manufacturing lines. 【Other Features】 ■ IP69K waterproof and dustproof performance ■ Maintenance-free with no lubrication required ■ O'clock mechanism that does not damage the shaft ■ Supports two-dimensional code engraving ■ Detachable stainless steel safety cover *Please check the comprehensive product catalog that summarizes multiple lineups via the catalog download button.
Inquire About This Product
Related Videos
basic information
- Dimensions are 100% compatible with JIS pillow blocks. - Shaft diameter settings: Φ12, Φ15, Φ17, Φ20, Φ25, Φ30, Φ35, Φ40 mm. - All stainless steel specification. - Housing material: SUS316. - Bearing box types: pillow type, narrow width pillow type, diamond flange type, square flange type, deformed flange type, take-up type. - A standoff housing with a clearance of 12 mm is provided for each type.
Price range
Delivery Time
※In-stock domestically.
Applications/Examples of results
【Main Uses】 ■ Food manufacturing lines: Conveying lines for prepared foods, processed foods, frozen foods, and confectionery equipment ■ Food packaging and packing lines: Processes with high cleaning frequency, such as packaging machines, filling machines, and conveyor equipment ■ Beverage bottling equipment: Environments where water and detergents are present, such as bottling lines and conveying equipment ■ Pharmaceutical lines: Manufacturing equipment and conveying processes that require hygiene and cleanliness 【Benefits of Introduction】 ■ Waterproof and dustproof, extending bearing lifespan and reducing equipment downtime risk ■ Prevents water ingress even with high-pressure cleaning, preventing bearing deterioration (rust) ■ Reduces maintenance workload through oil-free operation ■ Prevents foreign matter contamination by avoiding grease leakage ■ Improves hygiene management levels through enhanced cleanability ■ Streamlines replacement work by preventing shaft damage ■ Standard models support temperatures from -20°C to 100°C, while low-temperature models support -45°C to 125°C, making them suitable for a wide range of environments
Detailed information
-
SUS316 stainless steel bearing housing 4-lip seal (outer: fluororubber) 8-slit SUS440C inner ring NSF H1 certified food-grade grease pre-filled Drainage design
