Equipped with a detachable stainless steel cover! Waterproof stainless steel bearing unit.

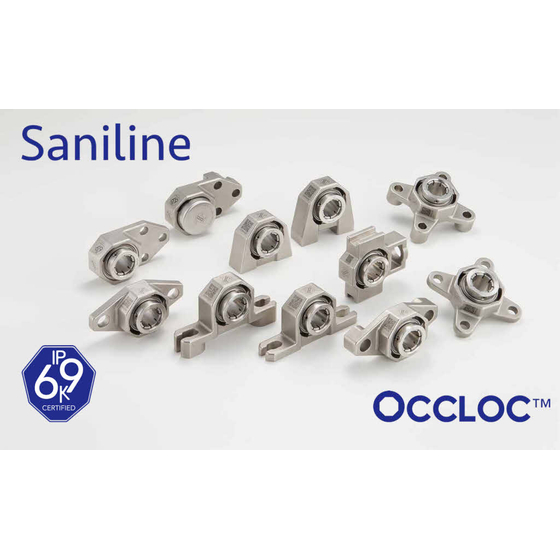

COC Waterproof Stainless Steel Bearing Unit "Saniline"
Easy attachment and detachment with one click! A waterproof stainless steel bearing unit equipped with a safety cover featuring a drain hole that eliminates the hassle of disposable parts and prevents water accumulation.
"Saniline" is a waterproof stainless steel bearing unit that adopts a detachable stainless steel safety cover that can be reused multiple times without the need for tools, balancing convenience on-site with longevity. Conventional safety covers are often made of resin or metal and are crimped, which means they deform or break once removed, making reuse impossible and leading to the norm of "one-time disposable" use. As a result, costs and efforts to replace the cover arise with each maintenance. The safety cover from COC can be easily attached and detached multiple times with just one click. Additionally, the design includes a drain hole at the bottom of the cover, preventing the accumulation of cleaning water and significantly reducing the risk of rust and bacteria growth. 【Other Features】 ■ IP69K waterproof and dustproof performance ■ Maintenance-free with no lubrication required ■ Clock mechanism that does not damage the shaft ■ Supports two-dimensional code engraving ■ Designed for enhanced hygiene, allowing cleaning even on the backside *Please check the comprehensive product catalog that summarizes multiple lineups via the catalog download button.
Inquire About This Product
Related Videos
basic information
- Dimensions are 100% compatible with JIS pillow blocks. - Shaft diameter settings: Φ12, Φ15, Φ17, Φ20, Φ25, Φ30, Φ35, Φ40 mm. - All stainless steel specification. - Housing material: SUS316. - Bearing box types: pillow type, narrow width pillow type, diamond flange type, square flange type, deformed flange type, take-up type. - A stand-off housing with a clearance of 12 mm is provided for each type.
Price range
Delivery Time
※In-stock domestically
Applications/Examples of results
**Main Uses** - Food manufacturing lines: Conveying lines for prepared foods, processed foods, frozen foods, and confectionery equipment. - Food packaging and packing lines: Processes with high cleaning frequency, such as packaging machines, filling machines, and conveyor equipment. - Beverage bottling equipment: Environments where water and detergents are present, such as bottling lines and conveying equipment. - Pharmaceutical lines: Manufacturing equipment and conveying processes that require hygiene and cleanliness. **Benefits of Introduction** - Waterproof and dustproof, extending bearing lifespan and reducing equipment downtime risk. - Prevents water ingress even with high-pressure washing, preventing bearing deterioration (rust). - Reduces maintenance labor through oil-free operation. - Prevents foreign matter contamination by avoiding grease leakage. - Improves hygiene management levels through enhanced cleanability. - Increases efficiency of replacement work by preventing shaft damage. - Standard models support temperatures from -20°C to 100°C, while low-temperature models support -45°C to 125°C, making them suitable for a wide range of environments.
Detailed information
-
SUS316 stainless steel bearing housing 4-lip seal (outer: fluororubber) 8-slit SUS440C inner ring NSF H1 certified, food-grade grease pre-filled Drainage design
