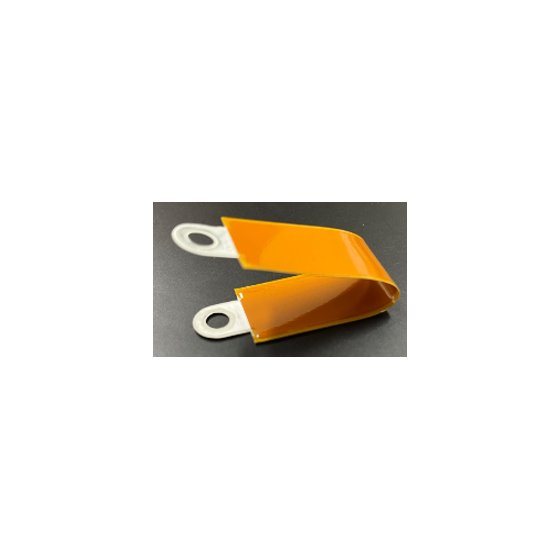

Supports up to 200A, softer than busbars and allows bending at necessary points. The insulation thickness has been reduced, achieving low inductance.
The integration of high-current FPC allows for the reduction of two busbars to one FPC, resulting in decreased assembly labor. Additionally, the narrow distance between conductor layers leads to low inductance, enabling the reduction of power supply noise. Conventional busbars, being made of metal plates or rods, pose challenges in flexible routing and wiring freedom. The "high-current FPC" offers flexibility, allowing connections to be made by bending at necessary points. Compared to traditional metal busbars, it provides greater wiring freedom, making it ideal for use in tight spaces and areas with height differences. ■ Features - Integration of high-current FPC (low inductance, power supply noise reduction) - Capable of manufacturing copper foil in 105μm and 200μm specifications - Component mounting is also possible - Easy to manufacture in various shapes - Lighter compared to busbars and harnesses - Optimal for stress relief (vibration absorption) - Flexible and capable of maintaining bent shapes - Single-sided / double-sided
Inquire About This Product
basic information
■ Specifications - FPC Length: Up to 3m - FPC Thickness: 60μm - FPC Width: 0.6mm or more - Wiring: We will accommodate customer needs - Layer Structure: Single-sided, double-sided (specifications to be discussed)
Price information
Consultation required for each specification.
Delivery Time
※About one month after the specification fix.
Applications/Examples of results
Vehicle-mounted and industrial equipment, etc.
