Accelerating semiconductor research and development! New materials that open up the future with spray drying.
Micro Mist Spray Dryer MMSD / GF Corporation
Instantly generate particles smaller than 10 microns! Innovative powder manufacturing realized by GF's spray dryer.

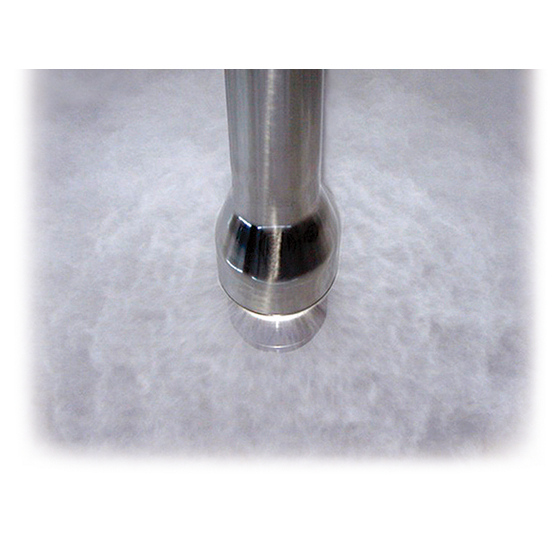

The Micro Mist Spray Dryer "MMSD" is an innovative spray drying device that generates liquids as fine particles. With its unique nozzle technology, it can instantly and in large quantities produce particles smaller than 10 microns. It contributes to the micronization and powder manufacturing of various materials, including lithium-ion battery materials, poorly soluble compounds, and heat-sensitive components. 〇 Features - Capable of drying fine particles (submicron). - Can handle large samples with continuous operation. - Compatible with organic solvents. - A wide range of options from small-scale testing to mass production. 〇 Solving these challenges - I want to create powders with uniform particle size. - I want to efficiently dry heat-sensitive materials. - I need a device that can accommodate everything from small-scale prototypes to mass production. Please feel free to contact us for more information.
Inquire About This Product
basic information
- Micronization nozzle: four-fluid straight edge, pencil edge, four-fluid circle edge - Dry hot air inlet temperature: up to 200℃ (maximum 320℃ with specification change) - Evaporation capacity: 1.3kg/h to 200kg/h (depending on model) - Recovery method: cyclone, bag filter - Others: models compatible with organic solvents, tablet remote management option available.
Price range
Delivery Time
Applications/Examples of results
For powder manufacturing in various fields such as lithium-ion battery materials, pharmaceuticals, and food. - Manufacturing of powders with uniform particle size - Efficient drying of heat-sensitive materials - Increased development speed through small-scale prototyping - Smooth scale-up to mass production (Formerly: Fujisaki Electric Co., Ltd.)
catalog（2）
Download All Catalogs
Company information
GF Co., Ltd. manufactures and sells Micro Mist Spray Dryers (MMSD) specialized in producing fine particles of 10 µm or smaller. Leveraging our proprietary technology with excellent particle size control, we support a wide range of applications, including electrode materials, electronic materials, pharmaceuticals, and cosmetics. We also offer spray drying trials prior to equipment installation, as well as contract processing and commissioned testing at laboratory scale. Please feel free to contact us for more information. Main Spray Drying Applications -Electrode materials (cathode and anode materials) -Electronic materials -Resin materials -Pharmaceuticals -Cosmetics
