By jumping important patterns, the design freedom will also increase!

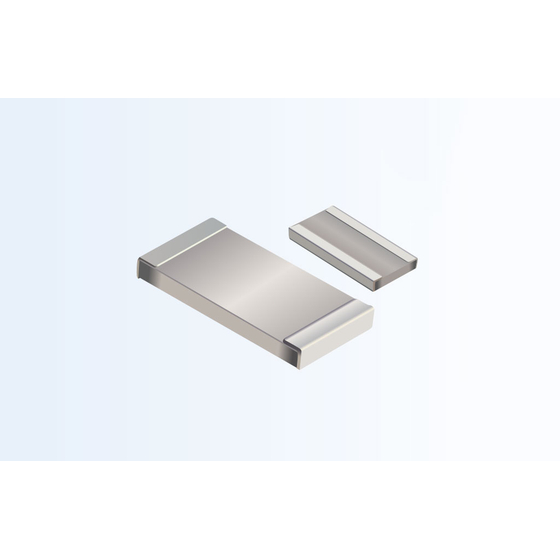

The "BTJ Series" is a thermal jumper chip that allows for board mounting while maintaining insulation without conductive paths, enabling thermal transfer and heat dissipation. It can be installed in locations where heat dissipation for power semiconductors such as MOSFETs and IGBTs, as well as ceramic resistors, is difficult, and if space is allocated in advance for pattern design, it can also be mounted later. With the increase in power consumption and the densification of mounted components, as well as the miniaturization of chip resistors, it solves the problem of excessive temperature rise due to board heat dissipation. 【Features】 ■ High thermal conductivity ■ High insulation resistance ■ Low capacitance ■ Increased design flexibility for patterns *For more details, please download the PDF (English version) or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF (English version) or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Switching Power Supply ■ RF Amplifier / GaN Amplifier ■ Data Server ■ Converter *For more details, please download the PDF (English version) or feel free to contact us.
