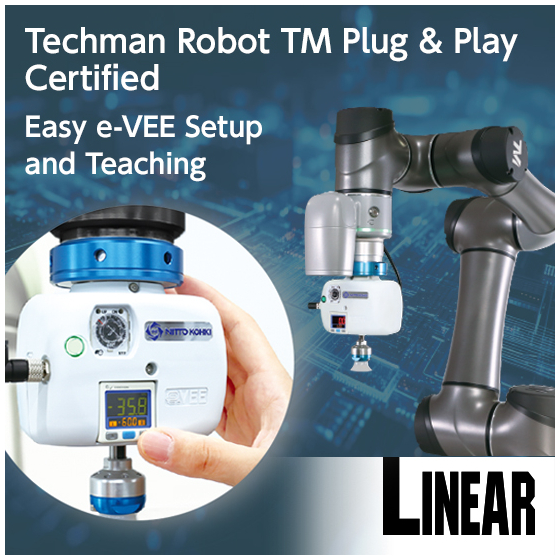

TM Plug & Play certified. Easy “e‑VEE” setup and teaching.
The electric vacuum end effector “e‑VEE” by Nitto Kohki is certified under Techman Robot TM Plug & Play program. TM Plug & Play is a system for easy connection, setup, and use of compatible devices with Techman Robot TM series. Compatibility with Techman Robot TM AI Cobot S series has been enhanced. By using TM Component, complex setup and programming previously required can be significantly reduced. 【Features】 ■Built-in vacuum pump (No compressor required) ■Up to 77% power reduction (vs. conventional) ■Quiet operation (No air discharge noise) ■No external air inflow ■No hose routing required
Inquire About This Product
Related Videos
basic information
【Specifications of e‑VEE】 Attainable Vacuum: -66.6 kPa (-500 mmHg) Free Air Displacement: 7.5 L/min Rated Voltage: 24 V DC Power Consumption: 14.4 W Energy Consumption: 0.014 kWh Size: W104 × D96 × H80 mm I/O Signal: PNP / NPN
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF catalog or feel free to contact us.
catalog（2）
Download All Catalogs
Company information
The NITTO KOHKI Group supports comfortable living and a prosperous future across a wide range of fields—from construction sites to the aerospace industry and global environmental maintenance projects. We respond to increasingly diverse needs with outstanding engineering that promotes efficiency and labor-saving. Our unique technologies are developed from the user’s perspective, creating convenient and innovative tools that serve as bridges to the next generation.
