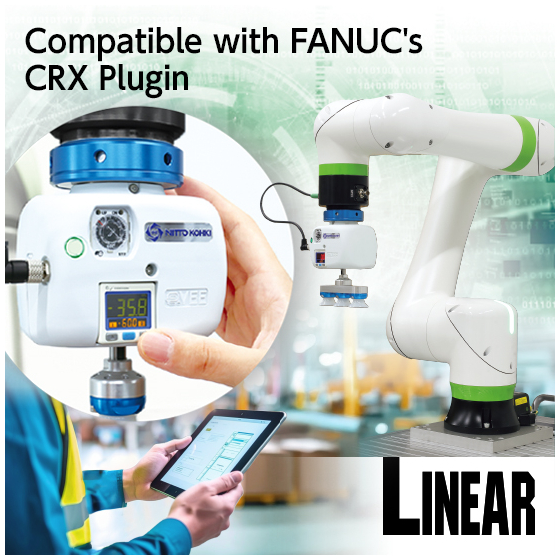

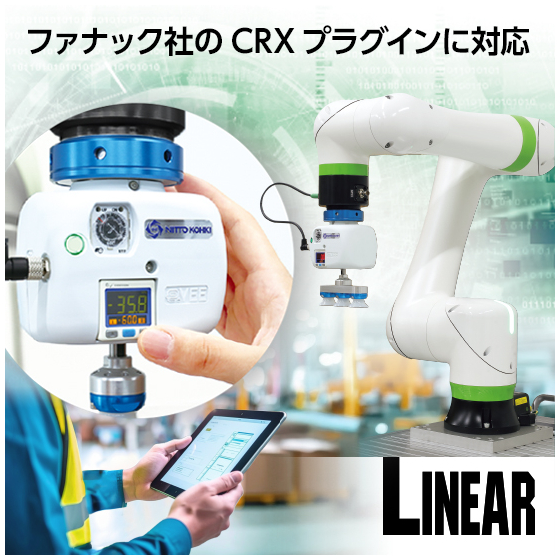

Easily set up and teach "e-VEE" from your tablet!
The electric suction hand "e-VEE" is an end effector for robots that is useful for suction transport. Recently, its compatibility with FANUC's collaborative robot "CRX" has been further improved. By using a plug-in software, it is easy to create programs from the tablet TP (teaching pendant). Additionally, it is equipped with a compact vacuum pump, eliminating the need for external air supply. Since it does not use a compressor, it significantly reduces the power required for suction transport. Compared to ejectors with equivalent capabilities, it achieves up to 77% power reduction. ■ Features 【Energy-saving】Pump automatically stops with pressure sensor 【Vacuum holding function】No need for compressor air 【Easy connection】No need for hose routing 【Quiet】No air discharge noise 【Clean】No external air inflow 【Input/output signal method】Selectable PNP/NPN
Inquire About This Product
Related Videos
basic information
【Specifications】 Maximum vacuum pressure: -66.6 kPa (-500 mmHg) Air discharge volume: 7.5 L/min Rated pressure: DC24V Power consumption: 14.4 W (instantaneous maximum value during use) Size: W104 × D96 × H80 Weight: 《EVE-500-NK》 body only: 0.92 kg, with installation: 1.08 kg 《EVE-500-KOM, EVE-500-KO》 body only: 0.94 kg, with installation: 1.13 kg Input/output signal method: PNP method/NPN method
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
