Optimal for side wiring of circuit boards: Space-saving design 90° pin header.

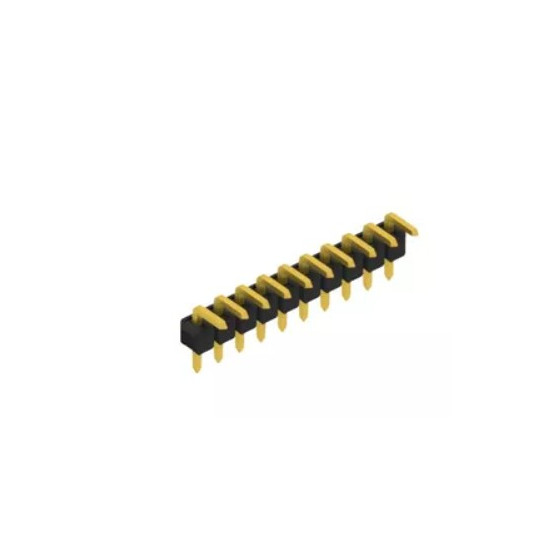

We, Aquaus Co., Ltd., are the official domestic distributor of Fischer Elektronik, a manufacturer of heat sinks, PCB connectors, and aluminum cases from Germany. The SL 3 is a light angle (90°) type pin header from the SL 1 series that supports a standard footprint with a 2.54mm pitch. It is designed to facilitate wiring in the lateral direction of the circuit board, making it an ideal connector for devices with height restrictions and high-density mounting. It supports through-hole mounting (THT) and achieves high contact reliability and mounting stability. ■ Features - Light angle (90°) type from the SL 1 series - Compatible with standard board footprint of 2.54mm pitch - Allows wiring to be drawn out to the side of the board (space-saving design) - High contact reliability with 0.635mm square pins - Compatible with reflow soldering (260°C / 10 seconds) *Available in 8 different lengths.
Inquire About This Product
basic information
■ Main Specifications Pitch: 2.54mm Number of Rows: 1 row Pin Structure: Right Angle (90°) Pin Size: 0.635mm (Square Pin) Contact Material: CuSn (Bronze) Alloy ■ Electrical Characteristics Rated Current: 3A Rated Voltage: 250V AC Test Voltage: 2000V Contact Resistance: ≤5mΩ Insulation Resistance: >10⁷ Ω·m ■ Materials and Environmental Resistance Surface Treatment: Selective Gold Plating / Gold Plating / Tin Plating Insulation Material: PA 4.6 GF (Glass Fiber Reinforced Polyamide) Operating Temperature Range: -40℃ to +163℃ Solder Heat Resistance: 260℃ / 10 seconds Flame Retardancy: UL 94 V-0
Price range
Delivery Time
Applications/Examples of results
Lateral lead-out of substrate terminals Control equipment and industrial equipment Communication equipment and embedded systems High-density mounting substrate
