High brightness (1000cd/m2), resistive touch, dimmer function (0-100%), DNV certification (marine grade) obtained, front waterproof IP66.

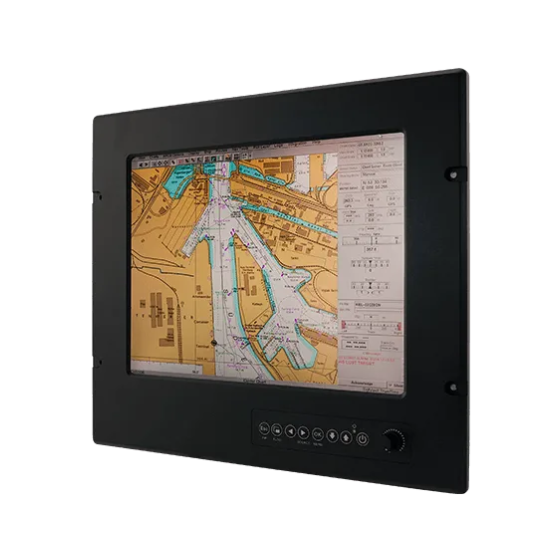

【Winmate R12L600MRM2HB Features】 ■ 12.1" resolution 1024x768 ■ Monitor applications for marine PCs, fish finders, GPS plotters, cameras, etc., requiring dust and water resistance ■ High brightness (1000 NIT) visible in sunlight ■ Supports 1 x VGA, 1 x DVI-D, 1 x Composite, 1 x S-Video ■ Front waterproof IP66 aluminum housing with powder coating ■ Supports Picture-in-Picture (PIP) function and multi-video input ■ Dimmer brightness adjustment from 0-100% ■ Wide DC power supply with DC9V to 36V input ■ Compliant with IEC 60945 Ed.4 / IACS E10 / DNVGL-CG-0339 ■ Supports VESA/panel mount installation ■ Shock and vibration resistant
Inquire About This Product
basic information
Specifications - Screen size: 12.1 inches - Physical resolution: 1024x768 - LCD panel brightness: 1000cd/m2 - Input connectors: 1 x VGA, 1 x DVID, 1 x Composite, 1 x SVideo - Enclosure: Front waterproof IP66, panel mount - Power supply: DC9V to 36V input power - Touch function: Resistive touch (RS232/USB) - Serial ports: 1 x RS232 for Remote Control, 1 x RS232 / USB for Touch Screen - Operating temperature: -15 to 55℃ - Size/Weight: 337(W) x 293.2(H) x 70.8(D) mm / 4 kg - Warranty period: 1 year - Certification/Standards: CE, FCC, DNVGLCG0339, IEC60945 Edition 4, IACS E10 standard Package contents - Manual - Monitor main unit - DVI cable - VGA cable - RS232 cable - SVideo cable - Composite cable
Price information
Open price
Price range
P3
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Outdoor use, monitors for PCs and video equipment on ships, etc.
