OSFP connectors supporting AI and cloud infrastructure. They enable high-speed interconnect for systems with a maximum transmission rate of 1.6T.
The "CN176" series is an interface connector compatible with OSFP (Octal Small Form factor Pluggable) optical transceivers. Our high-speed transmission technology enables the stack-type connector to support high-speed transmission of up to 1.6Tbps (PAM4 224Gbps × 8 channels) x2 slots. It facilitates high-speed interconnects in communication system equipment such as networking switches, routers, and servers. Additionally, we offer a range of related mechanical products, including cages, to broadly support your system design. ◆Features - Transmission performance: PAM4 1.6Tbps (224Gbps x 8ch) x 2 slots, 800Gbps (112Gbps x 8ch) x 2 slots - Stack-type connector: SMT specification - A lineup of mechanical products such as cages and heat sinks - Compliant with the industry standard OSFP MSA For detailed SI characteristic data or product inquiries, please feel free to contact us.
Inquire About This Product
basic information
◆Specifications (General Performance) - Operating Temperature Range: -40℃ to 85℃ - Insertion/Extraction Count: Maximum 100 times - Packaging: Tray ◆Specifications (Electrical Performance) - Rated Voltage: Max 3.3VDC - Rated Current: 0.5A/signal contact, 3.25A/power contact - Contact Resistance: Max 20mΩ (max 100mA / max 20mV) ◆Specifications (Interface Performance) - Pitch: 0.6 - Number of Pins: 120
Price information
Please consult with us.
Delivery Time
※Please feel free to consult us regarding quantities and other details.
Applications/Examples of results
Networking switches and communication system devices such as routers.
Line up（4）
| Model number | overview |
|---|---|

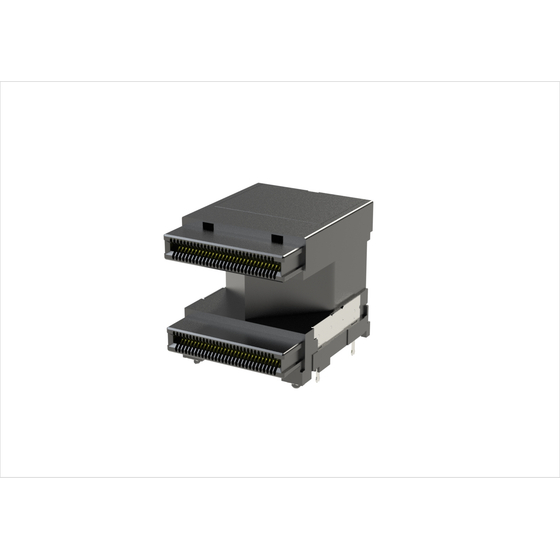

| CN176S-120-0012 | 800G stack connector, Ni-Au plated (Ni barrier) |
| CN176S-120-3001 | 1.6T stack connector |
| CN176D-1002-01 | 2x1 stack cage for 800G compatible products |
| CN176D-4002-01 | 2x4 stack cage for 800Gt compatible products |
